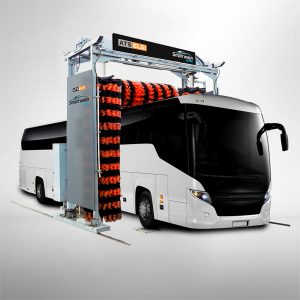

Automatic Bus Washer - 3B Pivot
Order Code: AA007
Category: Automatic Washing System
Features Automatic vehicle sensing system Precise Contour following system for roof carriers & A/C filters Protection against earth leakage Anti-toppling locks to avoid derailing Can wash 8 – 9 buses per hour 3-brush system ...
SPECIFICATION
Features
- Automatic vehicle sensing system
- Precise Contour following system for roof carriers & A/C filters
- Protection against earth leakage
- Anti-toppling locks to avoid derailing
- Can wash 8 – 9 buses per hour
- 3-brush system makes simultaneously washing of top and side of a bus possible
- Enabled with Limit switch to ensure proper movement of Horizontal Brush
- Advanced Electronic Transducer system for Precise & optimized Horizontal Brush performance
- Improves washing quality and maintains it throughout the day
Specifications
|
Model |
– |
ABW 3B PIVOT |
|
Machine type |
– |
Roll over gantry |
|
Input supply voltage |
V |
3 Ph, 415 +10% / -15% |
|
Frequency |
Hz |
50 |
|
Control system |
– |
PLC |
|
Max. bus length washable |
mm |
15000 (49.2 ft approx.) |
|
Bus washable width |
mm |
2500 to 2600 (8.2 to 8.5 ft approx.) |
|
Max. bus height washable |
mm |
4000 (13 ft approx.) |
|
No. of brushes |
Nos |
3 (2 vertical & 1 horizontal) |
|
No. of water nozzles |
Nos |
14 (10 side & 4 top) |
|
No. of shampoo nozzles |
Nos |
9 (6 side & 3 top) |
|
Material of construction |
– |
Hot dip galvanized steel & SS bare metal |
|
Machine overall dimensions |
mm |
(LxWxH) 2810 x 5200 x 5220 |
Variants
3-Brush System
- Roll-over Bus Washer
- Overlapping Vertical Brushes
- Contour Following Horizontal Brush
- PVDF Nozzles for longer life
- Under-Chassis Washer (Optional)
2-Brush System
- Roll-over Bus Washer
- Overlapping Vertical Brushe
- High Pressure Oscillating Top Nozzles Fixed/Contour Following (Optional)
- PVDF Nozzles for longer life
- Under-Chassis Washer (Optional)
