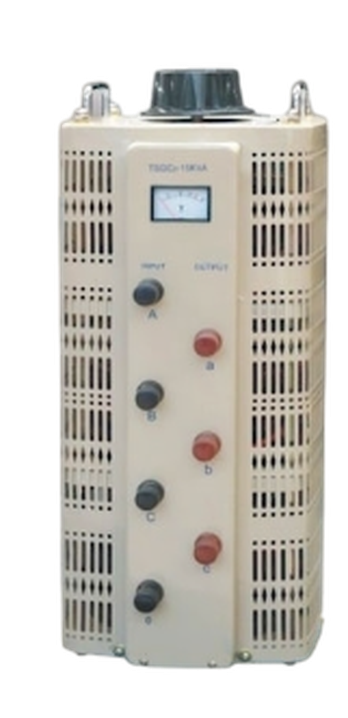

Auto Variable Transformer

Order Code: 23246393.26

Category: General Lab Equipment I

Rated capacity: 15KVA phase number: 3 Phases Input voltage: 380VAC (According your requires) Output voltage: 220VAC    (According your requires) Working frequency: 50/60HZ Rated current: 39A Short Circurt Impedance: 4% ...



SPECIFICATION

  • Rated capacity: 15KVA
  • phase number: 3 Phases
  • Input voltage: 380VAC (According your requires)
  • Output voltage: 220VAC    (According your requires)
  • Working frequency: 50/60HZ
  • Rated current: 39A
  • Short Circurt Impedance: 4%
  • Voltage Resistance: 2500VAc/min (does not have the puncture, no break down)
  • Insulation Level: Level H
  • Insulation Resistance: > 100MΩ/ DC500V
  • Material: Transformer coil adopts 200 degree high temperature copper wire or aluminum wire.
  • Silicon steel sheet, Baosteel, B50A470 material
  • Main material winding: Aluminum/Copper
  • Connection mode: Y(Can customized as your requirement)
  • Environment temperature: -10? +45? ;indoor enclosure, floor-mounted
  • Temperature rise limit: 100K (Actual temperature minus ambient temperature)
  • Cooling mode: Natural cooling/Fan system cooling
