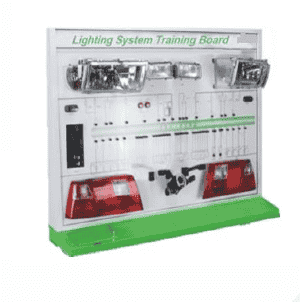

Automotive Lighting System Trainer

Product Overview:

• Type: Self-contained, fully operational automotive lighting system trainer

• Components: Manufactured using real, original automotive components, including:

  • Headlights

  • Side lights (front & rear)

  • Indicators

  • Spotlights

  • Alternator (motor-driven via special controller to demonstrate the charging circuit)

• Power Supply:

  • 12 V DC battery for the electrical circuit

  • 240 V AC for the speed-controlled motor

• Pin-out Facility: Ø 2 mm sockets on all electrical components, enabling real-time measurements without disturbing the wiring harness

Specifications:

• Trainer Type: Fully operational auto electrical trainer based on a generic automotive electrical system

• Key Components:

  • Alternator (motor-driven)

  • Headlights, side lights, indicators, brake lights

  • Control dash panel, relays, battery isolator

  • Variable speed control for the alternator

  • All rotating parts are covered with mesh guards

• Board Frame: Mounted in a vertical bench frame with a powder-coated paint finish

• Supply Voltage: 12 V DC and 240 V AC

• Dimensions:

  • Trainer: Length 675 mm, Width 950 mm, Height 860 mm, Weight: 55 kg

  • Optional Trolley Stand (E-CTS01): Length 725 mm, Width 1080 mm, Height 1780 mm, Weight: Approx. 83 kg

• Electrical Plugs: Fitted with electric plugs according to the Schuko-System CEE 7/4

Additional Features:

• Installation and User Training: Included with the system for proper setup and operation
