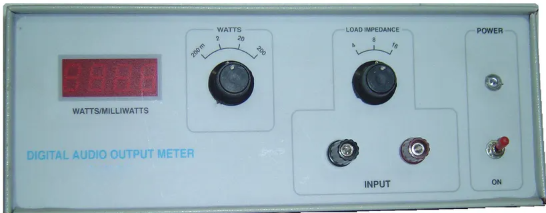

Audio Output Meter

Order Code: 21224988.4

Category: General Lab Equipment II

The Digital Audio Output Meter is a precision instrument, capable of measuring an output power of any audio frequency, amplifier or any audio power source. The instrument has a number of selectable terminating internal load impedances. The instrume



SPECIFICATION

  • The Digital Audio Output Meter is a precision instrument, capable of measuring an output power of any audio frequency, amplifier or any audio power source.

  • The instrument has a number of selectable terminating internal load impedances.

  • The instrument is used with an actual load such as a loudspeaker.

  • The instrument has four output power ranges, to measure wattage as low as 200 milliwatt full scale, with a resolution of 0.1 milliwatt, unto 200 watts RMS. Digital Audio Output Meter is meant for measurement of power output capacity of audio amplifiers or power sources

  • Range : 10Hz-20KHz

  • Output Waveform Load ohms 4, 8, 16

  • Ohms Power ranges 200mW, 2.0W, 20W, 200W

  • Display 3 1/2 Digit, 0.5 LED display

  • Accuracy : +/-(0.5%+/- 2)

  • Power Supply 220V/ 50Hz, +/-10%

  • Frequency Range (Hz) : 10Hz-20KHz

  • Load ohms : 4, 8, 16, Ohms

  • Load rating : 200 watts peak power, 100watts rms

  • Accuracy : 1.5% of reading (+/- 2 digits)

  • Accurate measurement of power with digital meter

  • Impedance selector for load termination

  • Selection of internal load

  • Accessories Operating Manual and set of test leads
