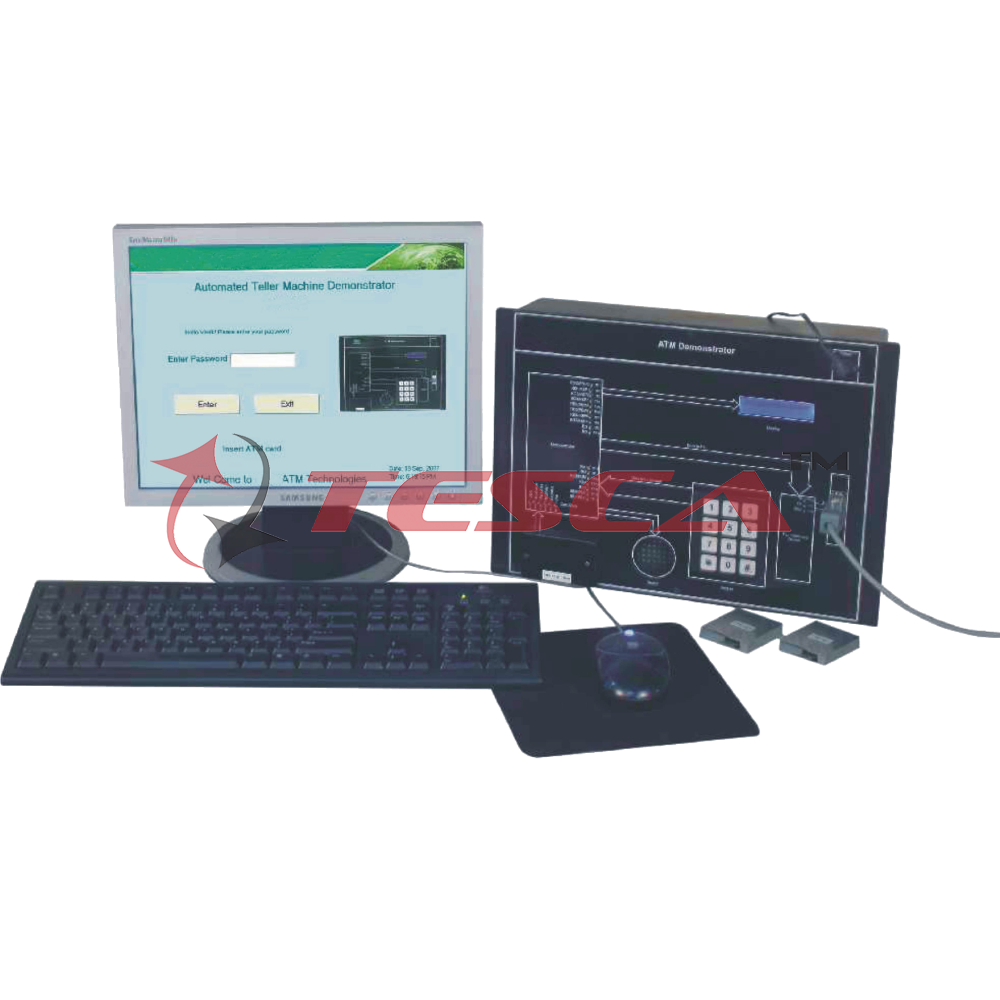

ATM Trainer

Order Code: 10918

Category: Consumer Electronics Trainers

The ATM Demonstrator is a very special Training System that has been designed to understand the working of an Automated Teller machine. The product is designed in such a way that a student can understand each block of ATM in a very eas...



SPECIFICATION

The ATM Demonstrator is a very special Training System that has been designed to understand the working of an Automated Teller machine. The product is designed in such a way that a student can understand each block of ATM in a very easy way. Various test points are given to check inputs and outputs of each block. Being  different from a conventional block diagram, internal structures of different blocks are also shown.

Technical Specifications
  • Input : 6 V DC
  • Display : 16 × 2 Characters LCD
  • Microcontroller : PIC16F877A , PIC16F84A
  • PC-Interface : RS - 232 (DB-9)
  • Key Matrix : 4 × 3
