ASK, FSK, BPSK, DBPSK Modulator & Demodulator

Order Code: 40701

Category: Communication Trainers

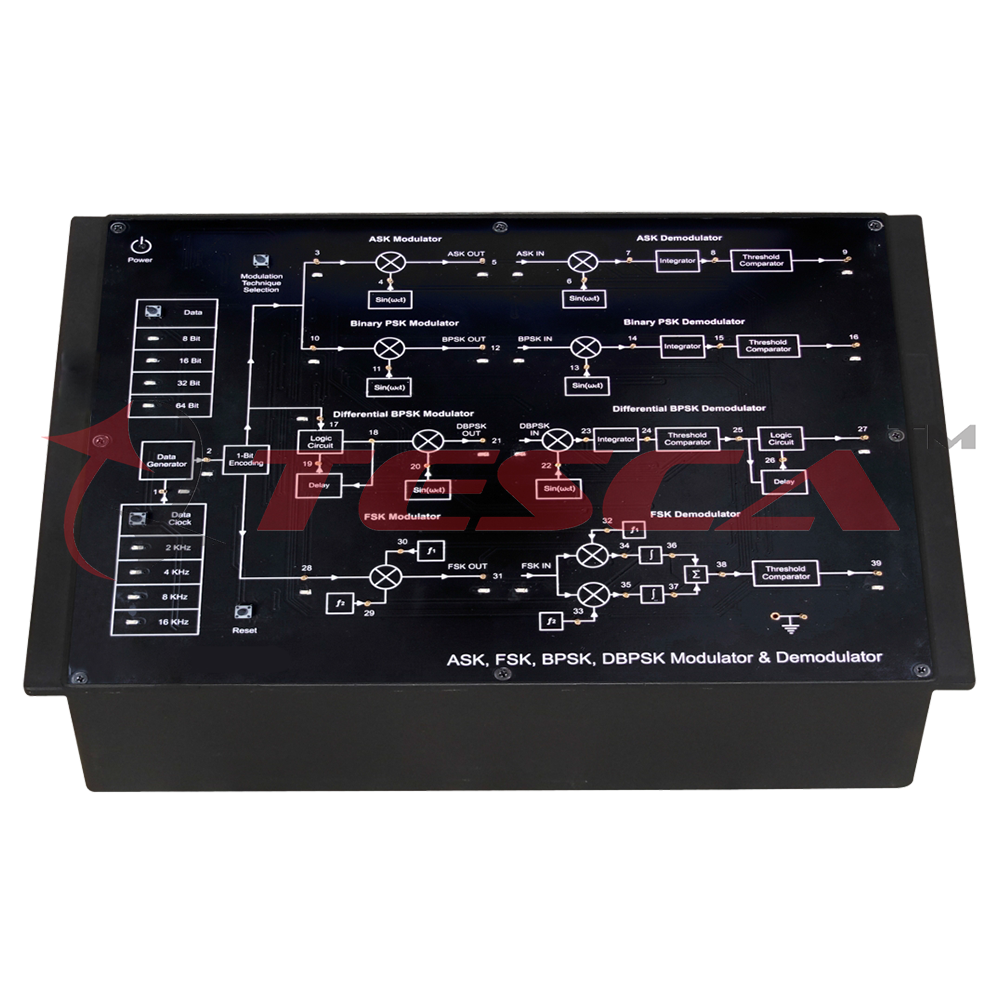

40701 provides an extensive hands on ASK, FSK, BPSK, DBPSK Modulator & Demodulator. Features Personalized Learning platform On-board Data Generator with various data patterns Selectable data frequencies and data patterns DDS techno...



SPECIFICATION

40701 provides an extensive hands on ASK, FSK, BPSK, DBPSK Modulator & Demodulator.

Features

  1. Personalized Learning platform
  2. On-board Data Generator with various data patterns
  3. Selectable data frequencies and data patterns
  4. DDS technology based Carrier Generator
  5. SMD LED indicators
  6. Can be issued just like a book for hands-on learning

Object

Study and analysis of :

Amplitude Shift Keying Modulation & Demodulation

  1. Amplitude Shift Keying Modulation
  2. Amplitude Shift Keying Demodulation.
  3. Integrator and Comparator block.

Frequency Shift Keying Modulation & Demodulation

Objectives:

  1. Frequency Shift Keying Modulation
  2. Frequency Shift Keying Demodulation.
  3. Integrator and Comparator block.

Binary Phase Shift Keying Modulation & Demodulation

  1. Binary Phase Shift Keying Demodulation.
  2. Integrator and Comparator block .
  3. Binary Phase Shift Keying Modulation .

Differential Binary Phase Shift Keying Modulation & Demodulation

  1. Differential encoder and decoder
  2. Differential Binary Phase Shift Keying Modulation .
  3. Differential Binary Phase Shift Keying Demodulation.

Technical Specifications

Modulation & Demodulation

Techniques                                      : ASK , FSK , BPSK , DBPSK

Internal Data Generator                   : Digital data

Data Pattern                                     : 8-Bit , 16-Bit , 32-Bit , 64-Bit

Frequency                                        : 2KHz, 4KHz, 8KHz, 16KHz

Internal Carrier Generator                : Direct Digital Synthesized

Carrier Signal                                   : Sine

SMD LED Indicators                         : 24 nos. for Digital data selection, data frequency selection and technique selection

Number of Test Points                      : 39 nos.

Crystal Frequency                            : 8MHz

Selection Mode                                : Push switches

Dimensions (mm)                             : W 326 x D 252 x H 52

Power Supply                                   : 110V - 260V AC, 50/60Hz

Weight                                               : 1.5Kg (approximately)

Operating Condition                          : 0-400C, 85% RH

Included accessories                         : 2mm Patchcord - 1no.

Simtel 11 - Digital Communication Interactive Software (optional)
