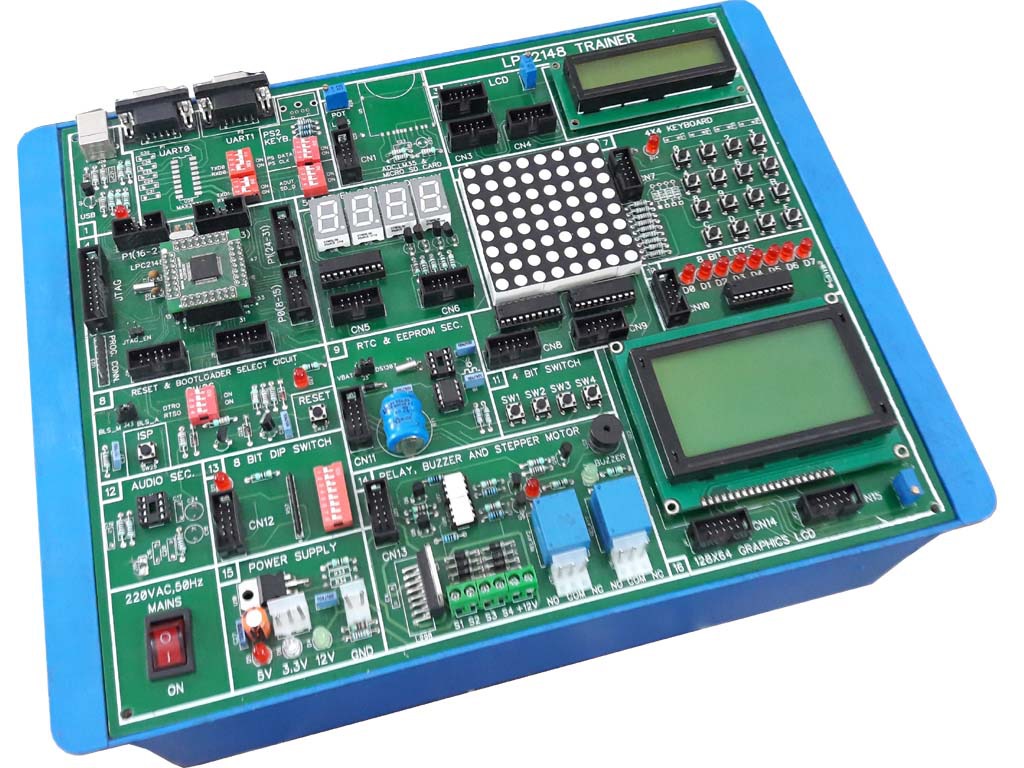

• ARM7S Microcontroller Development & Training System

• This trainer high performance 32-bit RISC architecture and high density 16-bit instruction set with real-time emulation and embedded trace support, which combine microcontroller with embedded high-speed flash memory.

• The 24-160 that comprises the ARM7S target board, JTAG debug hardware to plug into the target board, d.c. power supply and experimental manual.

• Curriculum Coverage

  • Switch & Jumper operation

  • Connectors

  • Tutorial  Features

  • ARM7S 32/16-bit microcontroller

  • Debug hardware & software

  • Full access to controller ports

  • USB or RS232 serial port connectivity

  • 8 channels of 10-bit ADC

  • Advanced interrupt controller

  • Development & testing of ARM7 programs

  • d.c. power supply included

  • Comprehensive experiment manual included  Applications Board

• This is a highly versatile board, compatible with all our micro trainer hardware or a PC.

• It is ideal for the basics of microprocessor programming and applications such "as decision making, D/A and A/D conversion, open and closed-loop control, delay loops, sub-routines & event counting.

• It covers the techniques of micro control of fibre optics, keyboard entry, digital sound production, d.c. motors control, infra-red sensing, heating & cooling & visual displays.

• It is required for use with a range of microprocessors, microcontrollers and programmable logic modules.

Inputs

• Optical fibre receiver

• 8-bit digital switch bank Numerical keypad

• Optical speed & position sensor Temperature sensor

• Slide potentiometer External analogue input  Outputs

• Optical fibre transmitter

• d.c. motor 8 LEDs Heater

• 2 dual segment displays Analogue output Speaker

• Consists of: Outputting data Inputting data

• Inputting & outputting data Subroutines & delays"

• Digital to Analogue conversion Analogue to Digital conversion Successive approximation Seven segment display

• Multiplexing seven segment display Scanning the keypad

• Control of a d.c. motor

• d.c. motor speed control

• d.c. motor speed control with IR sensor Temperature control

• Fibre optic link
