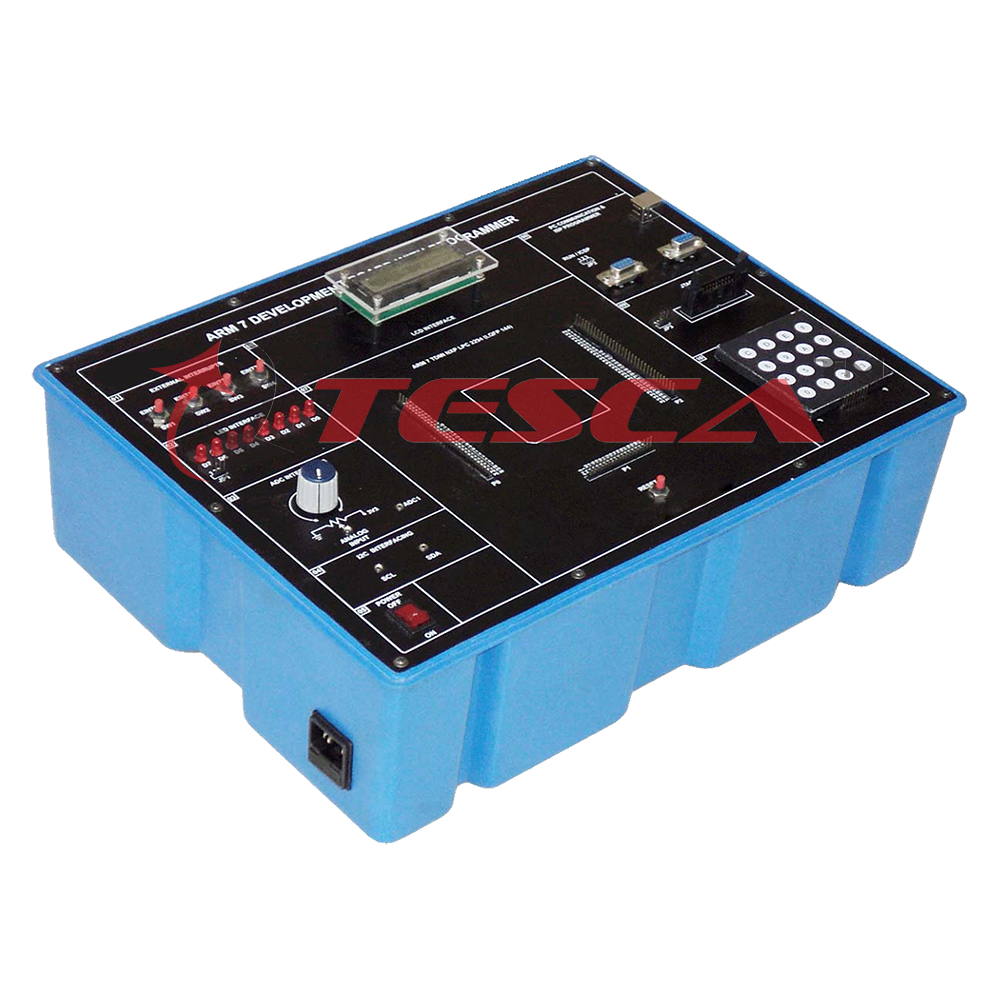

ARM-7 Development Board with Programmer LPC-2294

Order Code: 43558

Category: Embedded Trainers

ARM 7 Development Board 43558 is a 32-bit development platform and serves as a means for code development. This trainer is designed for students to explore ARM architecture and on board supporting peripherals which provide an ideal platform for exten...



SPECIFICATION

ARM 7 Development Board 43558 is a 32-bit development platform and serves as a means for code development. This trainer is designed for students to explore ARM architecture and on board supporting peripherals which provide an ideal platform for extensive embedded development. This trainer provides both the serial and USB connections which can be used to download and run a code on any standard IDE. This trainer allows users to evaluate, prototype and create application specific designs.

Object

  1.  Study and analysis of interfacing of LEDS
  2.  Study and analysis of interfacing of Switches
  3.  Study and analysis of interfacing of 16 x 2 Alphanumeric LCD
  4.  Study and analysis of interfacing of 12 bit Internal ADC
  5.  Study, analysis and programming for Transmission & Reception of data through UARTO
  6.  Study, analysis and programming for Transmission & Reception of data through UART1
  7.  Study, implementation, analysis and interfacing of 4 x 4 matrix keypad

Features

  1. LPC2294 (ARM 7 TDMI 32 Bit) MCU clocked at 12MHz
  2. Expansion connectors for plug in modules and prototyping area
  3. On board Flash download utility (programmer) for Philips microcontrollers
  4. Both USB & RS232 interface given for programming
  5. Every pin is marked in order to make the work easier
  6. Master Reset/Restart Key for hardware reset
  7. On board 16 x 2 Alphanumeric LCD Interface
  8. On board UART 0 and UART 1 Interface
  9. On board Switch Interface
  10. On board ADC (10 Bit) Interface
  11. On board 4 x 4 Matrix Keypad Interface
  12. On board I2C Interface
  13. On board facility to connect JTAG debugger
  14. Input/Output & test points provided on board
  15. Self contained trainer with on board DC and AC power supply
  16. CD with sample project code, Programmer software & useful documents
  17. Exhaustive course & reference material

Technical Specifications

  1. MCU: LPC2294
  2. Crystal frequency: 12MHz
  3. LEDs : 08 Nos.
  4. Switches: 04 Nos.
  5. Keypad: 4 x 4 Matrix Keypad
  6. ADC: 10 Bit Internal ADC
  7. Display: 16 x 2 Alphanumeric LCD
  8. Serial communication: Two RS232 Port
  9. Programmer: USB/Serial port
  10. Programmer mode selection: RUN/ISP Switch
  11. Baud rate: 9600 bps (for both USB & Serial port)
  12. Programmer unit: Ready to run programmer will program Philips flash devices
  13. Test points : 07 Nos.
  14. Interconnection : 2 mm patch cords and FRC cables
  15. Mains supply: 230V + 10% 50Hz
  16. Power consumption: 20VA (approximate)
  17. Dimensions (mm): W340 x H125 x D210 18 Weight: 1.3kg (approximate)

List of Accessories:

  1. RS232 serial cable.......................................01 Nos.
  2. USB cable....................................................01 Nos.
  3. 20 Pins FRC connector................................01 Nos.
  4. Patch cord 2 mm length 50cm.....................02 Nos.
  5. Software CD.................................................01Nos.
