Analogue & Digital Trainer
Order Code: 24257358.1.93
Category: General Lab Equipment V
Digital Systems Trainer Registers Counters The arithmetic unit ALU Addition 7 subtraction Data storage & retrieval Fetching an instruction and it's operand 3 x 4 bit shift registers with parallel load, shift left and right o...
SPECIFICATION

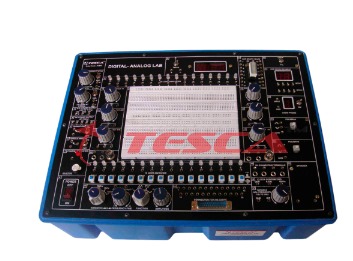

Digital Systems Trainer
- Registers
- Counters
- The arithmetic unit ALU
- Addition 7 subtraction
- Data storage & retrieval
- Fetching an instruction and it's operand
- 3 x 4 bit shift registers with parallel load, shift left and right operation
- 4 bit arithmetic logic unit
- 64 bit RAM (16x4-bit)
- Programmable 4 bit up/down counter
- Quadruple two input data selector
- 4 to 16 line decoder
- Four switch selectable speeds. Single shot clock operation
- Three banks of 4 input switches
- Three 4 bit LED displays. Hexadecimal 7-segment display with hex decoder
- Over voltage and reverse voltage for short periods. A 500 mA fuse protects
- against short circuits on the deck. NB Sustained voltages or reverse voltages
- could damage the deck and should be avoided
- Connections are by 2mm leads and sockets Analogue Systems Trainer
- DAC
- DAC using analogue switch
- DAC based on R-2R network
- Monolithic DAC
- A to D conversion ADC
- Integrating ADC
- Sample & hold
- R-2R ladder network
- Binary weighted ladder network
- 8-bit fast A-D converter
- An analogue integrator
- A dual input analogue comparator
- 10k? potentiometer provides analogue inputs & reference voltages
Additional accessories required to be supplied in this training kits is
- Power Supply +5 V =, +/- 15 V=
- Required connecting leads for both the kits
