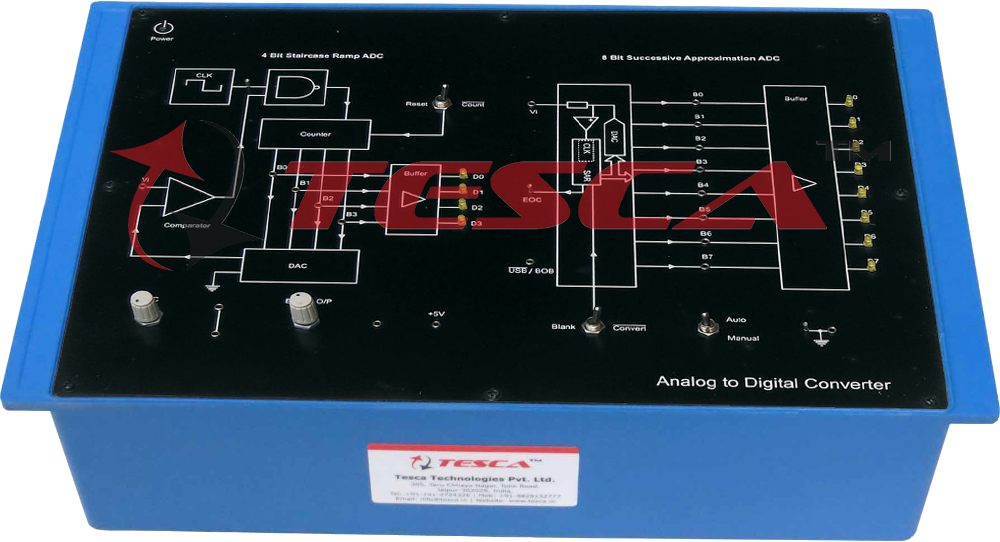

Analog to Digital Converter

Order Code: 38714

Category: Digital Electronics Trainers

38714 Analog to Digital Converter composes of the devices transforming an analog signal into discrete signals. It converts continuously varying signal with time into discrete signal. The Analog to Digital converter 38714 TechBook demonstrates two tec...



SPECIFICATION

38714 Analog to Digital Converter composes of the devices transforming an analog signal into discrete signals. It converts continuously varying signal with time into discrete signal. The Analog to Digital converter 38714 TechBook demonstrates two techniques :

  • 4 bit stair case ramp ADC
  • 8 bit successive approximation ADC

Features

  1. 4 bit discrete & 8 bit monolithic converters
  2. Unipolar & Bipolar DC Voltages
  3. 0/P status displayed by LED
  4. Functional block indicated on board mimic
  5. Built in DC Power Supply

Object

  1. Analysis of operation of counter converter
  2. Testing the working of a monolithic converter

Technical Specifications

A/D Conversion

4 bit discrete (ramp)

8 bit monolithic converter

Signal Source          : Unipolar & Bipolar DC voltages

0/P Indication           : By LEDs separate for each type

Inter connections     : 2 mm banana socket

Dimensions (mm)     : W 326× D 252 × H 52

Weight : 1 Kg approximately

Power Supply : 110-220 V, ±10%, 50/60 Hz

Power Consumption : 3 VA approximately

Included Accessories :

Patch cord 16” (2mm)   : 16 nos.

Mains cord                     : 1 no.
