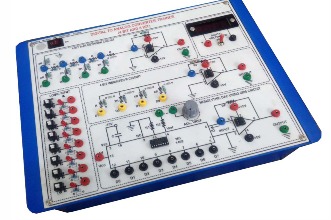

ANALOG TO DIGITAL AND DIGITAL TO ANALOG CONVERTER TRAINER
Order Code: 24257783.6
Category: General Lab Equipment V
It should consist of 8-bit binary weighted and 8-bit ladder type DAC are constructed using discrete components It should consist of 8-bit monolithic DAC having settling time in the range of ns, wide power supply ra...
SPECIFICATION
-
It should consist of 8-bit binary weighted and 8-bit ladder type DAC are constructed using discrete components
-
It should consist of 8-bit monolithic DAC having settling time in the range of ns, wide power supply range, low power consumption, full scale error ± 1LSB
-
8-bit digital ramp ADC constructed using discrete components should be included.
-
It should provide 12-bit monolithic ADC having conversion time in the range of μs, industry standard pin out, wide input range
-
Should include 8 onboard switches to provide digital inputs to DAC
-
Should include 8-bit counter running on external clock frequency to study settling time of DAC
-
It should consist of Built in low frequency clock generator
-
1 KHz sine wave with adjustable amplitude level should be provided.
-
Onboard variable DC voltage source for studying unipolar and bipolar modes of ADC should be provided
-
Should include 12 output LEDs to observe ADC outputs
-
Should provide ADA operates on DC power supply (+12V,-12V,+5V and GND)
-
Interconnection should be provided by standard 2mm connector
-
Extensive experimental manual is to be provided with the kit
