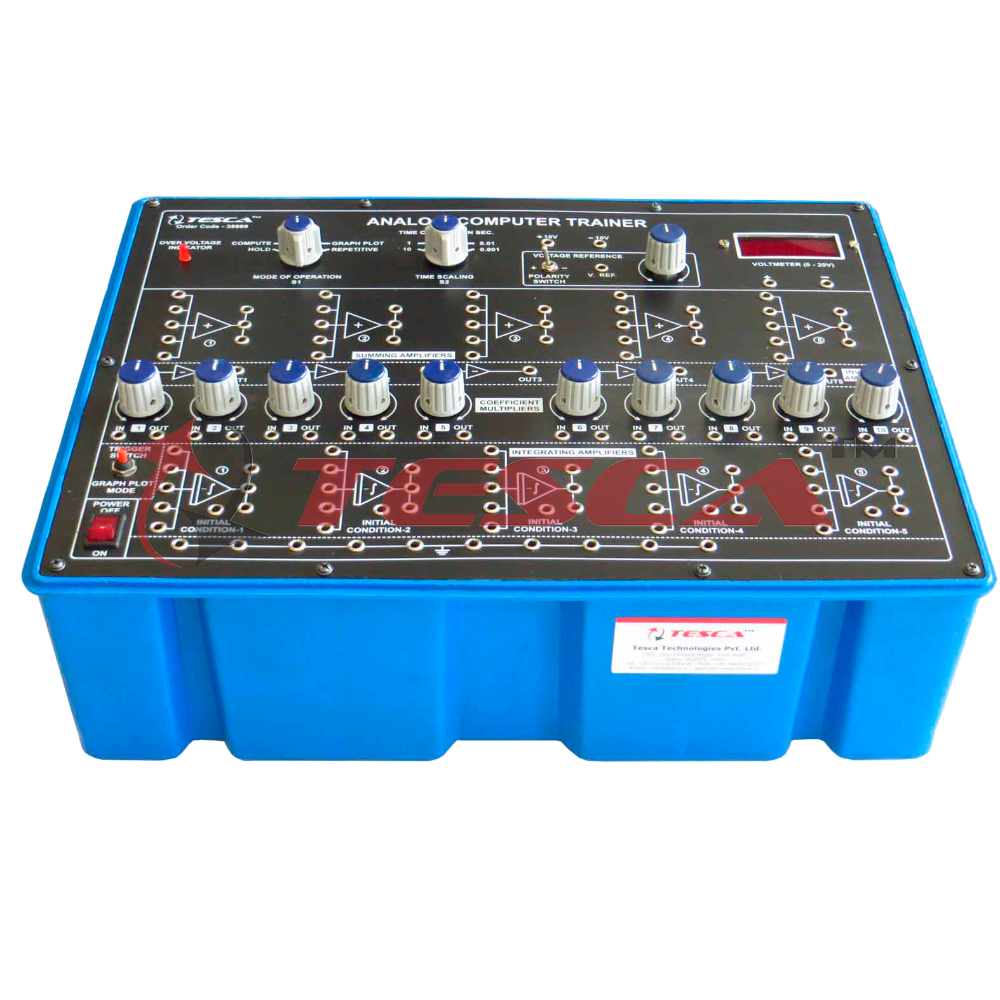

Analog Computer Trainer

Order Code: 38689

Category: Digital Electronics Trainers

Order Code 38689 The Analog Computer Trainer is a totally solid state electronic device designed to teach the basics of analog computation and to solved various differential equations to engineering & science students. Using this trainer boa...



SPECIFICATION

Order Code 38689 The Analog Computer Trainer is a totally solid state electronic device designed to teach the basics of analog computation and to solved various differential equations to engineering & science students. Using this trainer board, students can study the various building blocks used in the analog computation like summing amplifiers, integrating amplifiers, inverting amplifiers & coefficient multipliers. Using this trainer board the students can solve linear equations, simultaneous equations & differential equations with constant coefficients.

Features:
  1. FET input Op-Amp. are used.
  2.  In built power supply
  3. Detachable patch board is provided therefore computer may be programmed to solve many kinds of problems.
  4. Variable reference voltage controlled by helical potentiometer.
  5. Digital voltmeter is provided to set coefficient multiplier and to measure output voltage.
  6. Time scaling switch to vary the time constant of integrator
  7. Mode selection switch to select mode of operation
  8. Facility to set initial condition to any desire value.
  9. Weight : 9 Kg. (Approx.)
  10. Dimension : W 445 x H 260 x D 470
