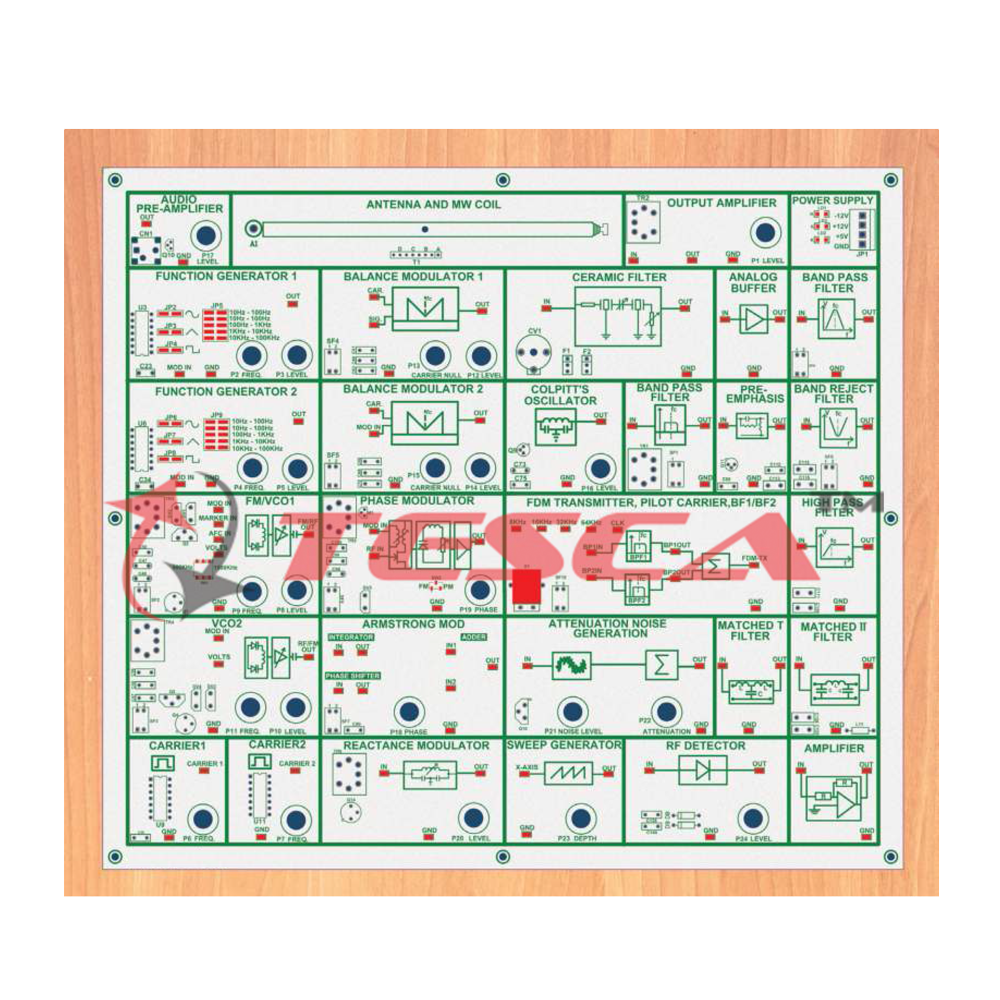

Analog Communication System Trainer

Order Code: 22236096.14

Category: General Lab Equipment I

Tesca is pleased to announce the Launch of Analog Communication System which allows the Students to learn the fundamental concepts by building the Analog Communication System experiments at the Block Diagram level. Theory comes to life as they build ...



SPECIFICATION

Tesca is pleased to announce the Launch of Analog Communication System which allows the Students to learn the fundamental concepts by building the Analog Communication System experiments at the Block Diagram level. Theory comes to life as they build different Modulators and Receivers.

The System is completely self-contained with all required Modulating Signals, Carriers generated on Board and the students can connect respective functional blocks using patch-chord to build their required Modulation / Receiver Scheme. Waveforms can be displayed on a Digital Storage Oscilloscope which is generally available in the Laboratory.

This System covers the complete Analog Communication Curriculum and serves as a very good practical learning board to teach the fundamentals of Analog Communication.

Technical Specifcation:

Transmitter

GENERATOR BLOCK
Function Generator 1

  • Waveform : Sine, Square & Triangular
  • Frequency : 1Hz to 100 KHz, Variable
  • Amplitude : 0 to 2V, Variable

Fuction Generator 2

  • Waveform : Sine, Square & Triangular
  • Frequency : 1Hz to 100 KHz, Variable
  • Amplitude : 0 to 2V, Variable

Carrier Generator 1

  • Waveform : Square wave
  • Frequency : 1 KHz to 20 KHz, Variable
  • Amplitude : 2V, Fixed

Carrier Generator 2

  • Waveform : Square wave
  • Frequency : 1 KHz to 30 KHz, Variable
  • Amplitude : 2V, Fixed
  • Voltage Controlled Oscillator (VCO) & FM Modulator
  • Frequency : 400 KHz to 1500 KHz, Variable
  • Amplitude : 0 to 2V, Variable
  • Voltage Controlled Oscillator (VCO2)
