Analog and Digital Electronics Lab

Order Code: 23246495.2.1

Category: General Lab Equipment III

The Analog and Digital Electronics System Lab has the following features: 1. Suitable for basic electric circuits, linear circuits, combinational logic, sequential logic, microprocessor circuits, and FPGA. 2. User-friend...



SPECIFICATION

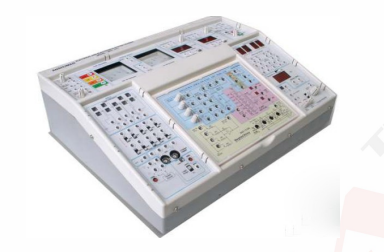

The Analog and Digital Electronics System Lab has the following features:

1. Suitable for basic electric circuits, linear circuits, combinational logic, sequential logic, microprocessor circuits, and FPGA.

2. User-friendly comprehensive power supply, function generator/counter, digital meter, analogue meter and testing devices.

3. Universal breadboard(1440 tie points) for circuit design, faya-Nugget breakout boards NGT-series and prototyping.

4. Tie points fitting solid leads AWG#22~30 (0.3~0.8mm).

5. USB Interface for optional fayaduino Nano board, FPGA, MCU.

6. Peripheral hardware: LED, JoyStick switch, Rotate switch, Potentiometer, Pulser switch, Rotary encoder, Data switches, Speaker, Power supply, Digital displays, Function generator/counter, DCV/DCA meter, Analog meter, etc,

7. Options: FPGA board (with USB Blaster), MCU board, faya-NuggetCombo Pack.



The Set of Analog and Digital Electronic Training Systems will include:

Set of sub-modules with the motherboard for the study of analogue electronics (DL 3155BRS-BAE)




First Bench

Basic bench 2 x 1 x 0,8 mt (DL 1001-1-08)

Set of sub-modules with the motherboard for the study of digital electronics (DL 3155BRS-BDE)





Second Bench

Basic bench 2 x 1 x 0,8 mt (DL 1001-1-08)

Base frame with power supply and connection to PC (DL 3155AL2)



Third Bench

Electronic devices (DL 3155M11)

CAI software for DL 3155M11 (DL 3155M11SW)

Applications of the diode (DL 3155M12)

CAI software for DL 3155M12 (DL 3155M12SW)

Transistors (DL 3155M13)

CAI software for DL 3155M13 (DL 3155M13SW)

Operational amplifier (DL 3155M16)

CAI software for DL 3155M16 (DL 3155M16SW)

Supervision and control software (DL LAB)

Basic bench 2 x 1 x 0,8 mt (DL 1001-1-08)

Base frame with power supply and connection to PC (DL 3155AL2)

Fourth Bench

Circuits with filters (DL 3155R23)

Software CAI for DL 3155R23 (DL 3155R23SW)

Digital logic fundamentals (DL 3155E20)

CAI software for DL 3155E20 (DL 3155E20SW)

Digital circuit fundamentals (DL 3155E21)

CAI software for DL 3155E21 (DL 3155E21SW)

Memories (DL 3155M20)

CAI software for DL 3155M20 (DL 3155M20)

Conversion (DL 3155M21)

CAI software for DL 3155M21 (DL 3155M21SW)

Supervision and control software (DL LAB)

Basic bench 2 x 1 x 0,8 mt(DL 1001-1-08)


Technical Clauses:

The bidder must present a manufacturer authorization

  • Training manual for the items

  • Software packages needed for experimenting using these items

  • The supplier must provide one week of training to 15 trainers
