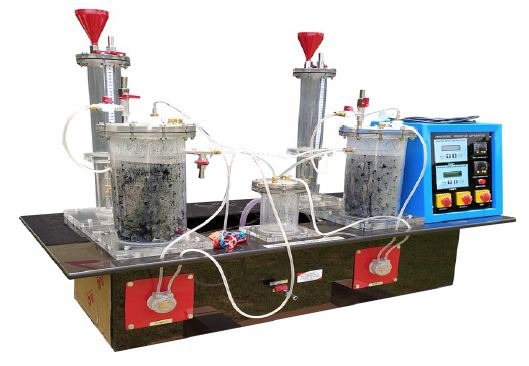

Anaerobic Digester

Order Code: 24257281.B.2

Category: General Lab Equipment V

A benchtop anaerobic digester for wastewater treatment studies Equipped with two 5l packed bed, upward-flow reactors Each reactor has gas sampling & collection facilities Reactors may be operated in series or paralle...



SPECIFICATION

  • A benchtop anaerobic digester for wastewater treatment studies

  • Equipped with two 5l packed bed, upward-flow reactors

  • Each reactor has gas sampling & collection facilities

  • Reactors may be operated in series or parallel flow arrangement, using variable-speed peristaltic pumps

  • Feed flow rate to each reactor can be accurately and independently controlled to any temperature between ambient and 55°C, using 200W heating jackets

  • Thermostatic cut-out set to 110°C

  • An instruction manual describing test and practical work capabilities, including details of a proven feedstock (synthetic wastewater) is included

  • Reactors: Two, identical -Nominal capacity: 5 liters -Packed volume: 4 litres 150mm diameter x 250 mm height

  • Reactor packing: 25mm diameter Bio-balls

  • Temperature control: For each reactor: 200W heating jacket with PID control from a temperature sensor positioned inside the reactor, set point within range ambient to 55°C, the jacket is thermostatically protected by a cut-out set at 85°C

  • Feed pumps: Two identical peristaltic pumps: variable speed using 10 turn potentiometer to 4rpm supplied with three tube diameters, 1.6, 3.2 and 4.0mm, flow rates from 0.2 to 5.8 L/day

  • Gas collection vessels: Two, identical - linear scale, 0-5 liter capacity
