Air Conditioning and Climate Control Trainer

Order Code: AT0026

Category: Automotive Trainers

Description Air-conditioning system trainer A system with an expansion valve Electronic climate control system CLIMATRONIC A fully functional system with R134a refrigerant Diagnosis through OBD 16 pole diagnos...



SPECIFICATION

Description

  1. Air-conditioning system trainer

  2. A system with an expansion valve

  3. Electronic climate control system CLIMATRONIC

  4. A fully functional system with R134a refrigerant

  5. Diagnosis through OBD 16 pole diagnostic socket

  6. Open contacts for measuring of system's components and circuits

  7. Fault code simulations

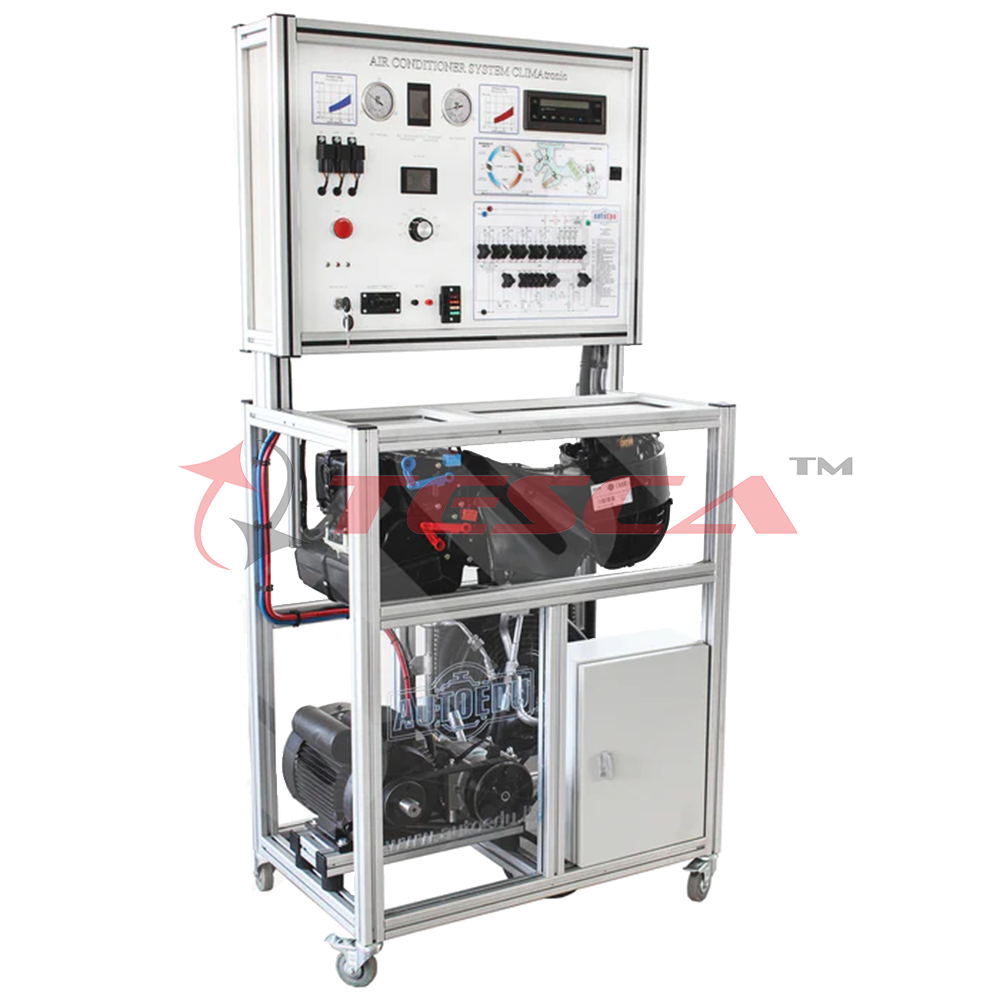

A fully functional air conditioning and climate control system trainer is installed in a mobile aluminum frame. This training board - simulator is specially designed to help technical students understand better electronic air conditioning and climate control system CLIM Atronic. The educational training board is based on Audi/VW OEM components. The integrated air conditioning and climate control system shows the different operation modes. Equipment for technical and vocational Tesca education and training.
The training board-simulator is a great educational tool that allows students to learn the structure of air conditioning and climate control system, study its components, and perform various measurements, tests, and other diagnostic procedures to use diagnostic scan tools or other special tools and equipment.


Technical Specifications And Functions

  1. Integrated electronic air conditioning system with climate control (Climatronic) and expansion valve

  2. Monitoring operation modes of air conditioning and climate control system

  3. Visible HVAC compressor, electromagnetic compressor clutch, and its operation modes

  4. With installed pressure gauges it is possible to monitor the pressure distribution of R134a refrigerant in the high and low-pressure sides (circuits)

  5. Visible HVAC (heating, ventilating, and air conditioning) mixing unit with its operation modes

  6. Visible the operation of airflow flaps

  7. Ability to monitor and control changes of the parameters of each system component

  8. The airflow fan speed

  9. The airflow flap positions

  10. The interior (inside) temperature

  11. The refrigerant R134a pressure changes depending on the speed of the cooling radiator fan

  12. The rate of the temperature change depending on the speed of the airflow radiator fan

  13. The airflow flap position according to operation modes: defrost, air recirculation (fresh air), or footwell

  14. The training board has a diagram with LED's which shows the operation modes of the outlets and flaps

The training board has a complete electrical wiring diagram with built-in banana plug jumpers for measurements and simulation of the system fault codes. Ability to simulate more than 15 system faults by disconnecting banana plug jumpers. Ability to monitor the changing operation mode of each system component.
The training board has an integrated voltmeter. It displays the voltage of electronic system components:

  1. G92 Control motor potentiometer for temperature flap

  2. G114 Control motor potentiometer, footwell/defroster flap

  3. G112 Control motor potentiometer, central flap

  4. G113 Control motor potentiometer, airflow flap G89 Fresh air intake duct temperature sensor

  5. G191 Vent. temperature sender, center

  6. G192 Vent. temperature sender, footwell

  7. G17 Ambient temperature sensor

The integrated thermometer displays the temperature change depending on the pressure of the refrigerant R134a;


Diagnostic and Measurement
Oscilloscope/Multimeter

System's parameters are measured by connecting to the banana connector;
Ability to measure electrical signal parameters of each system component (such as sensor or actuator)


Control Unit Diagnosis (with The Scan Tool)

  1. Diagnosis through OBD 16-pin diagnostic connector

  2. Electronic control unit (ECU) identification

  3. Reading/erasing fault codes

  4. Displaying the operating system parameters (live data)

  5. Activating the actuators (depends on the control unit)

  6. Control unit encoding/configuration (depends on the control unit)

  7. Control unit diagnosis (manual procedures without the scan tool)

  8. Manual diagnostics of Climatronic ECU

  9. Error reading - manual procedures

  10. Displaying the operating system parameters (live data) - a manual procedure

Other

  1. The stand has a closed structure - internal wiring is not visible

  2. Power supply: 220V

  3. Dimensions approx.: (HxLxW): 1680x800x500mm

  4. Nett weight approx.: 100 Kg

  5. CE certificate

Optional Accessories

  1. Tesca oscilloscope

  2. OBD Diagnostic scan tool

  3. Air conditioning recharge station

Tesca training equipment is a great tool for professional teachers and technicians that helps explain to students of technical subjects how processes in Air Conditioning And Climate Control Educational Trainer AT0026 Tesca operate and its technology.
