Aggregate Crushing Value Test Apparatus 7.5cm With Measuring Cylinder

Order Code: 20214353.50

Category: General Lab Equipment IV

The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load.  The oven dried and accurately weighed aggregates are subjected to crushing test on compression testin



SPECIFICATION

  • The apparatus is available in three size 75mm dia for 1/8” to ¼” size aggregate, 150mm dia for 3/8” to ¾” aggregate (standard) and 300mm dia for 1” to 2” aggregate.

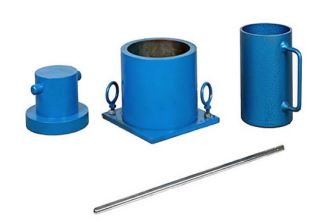

  • Consists of Case hardened Mild steel cylindrical container of 150mm dia + 0.5mm x 130mm to 140mm high with base plate 200 to 230mm square x 6mm thick. A plunger of 148mm + 0.5mm dia x 100 to 115mm high.
  • All parts directly coming in to contact with the specimen during the test are made of mild steel duly case hardened.
  • Supplied complete with tamping rod, 16mm dia x 600mm long, one end rounded.
