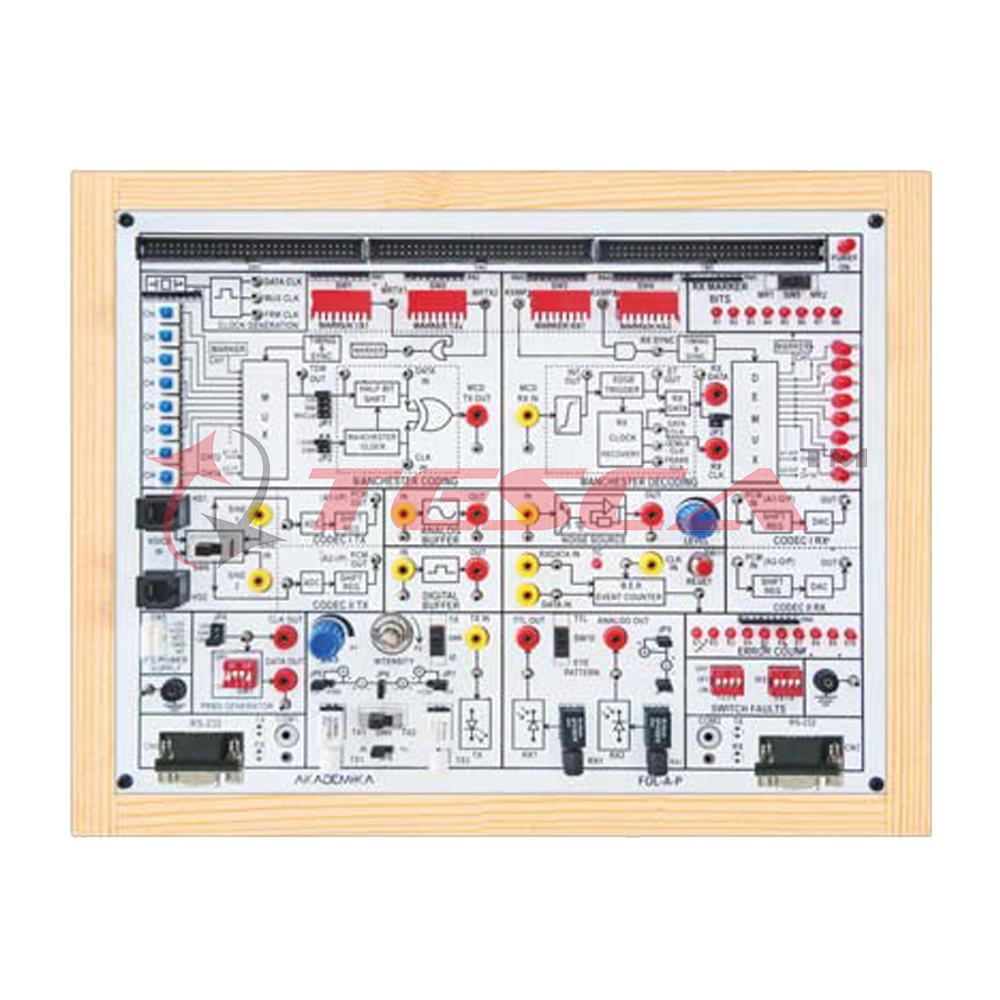

Advanced Fiber Optic Communication Trainer

Order Code: 28554

Category: Fiber Optic Trainers

Specfications Transmitter: 2 fiber optics LED Transmitter 01: Peak wavelength of emission 950nm Infrared (SFH 450V) Transmitter 02: Peak wavelength of emission 660nm (SFH756V) Receiver: 2 photo detector Receiver 01: Photo transistor wit...



SPECIFICATION

Specfications

  • Transmitter: 2 fiber optics LED
  • Transmitter 01: Peak wavelength of emission 950nm Infrared (SFH 450V)
  • Transmitter 02: Peak wavelength of emission 660nm (SFH756V)
  • Receiver: 2 photo detector
  • Receiver 01: Photo transistor with responsivity of 80μÁ/μW (SFH 350V)
  • Receiver 02: Photo detector with TTL logic output (SFH 551V)

Modulation techniques

  • Digital communication with pulse code modulation (PCM) using Motorola MC145502 CODEC chip

Coding/ decoding

  • Manchester coding/decoding technique
  • Noise generator: White noise source output
  • Amplitude: 0 ~ 5Vpp
  • PRBS generator: 16-bit switch selectable
  • Clock: 32 K z, 64 K z, 128 K z
  • Bit error rate: 10-bit counter with LED
  • Measurement: indication upto 255 count
  • Multiplexing: Time division multiplexing, 16 channels (64 Kbits/Sec)
  • Frame marker: Two 8-bit user selectable markers in alternate frames
  • Data rate: 1.024 MBits / Sec
  • Voice PCM: 2 channels voice PCM with telephone hand sets (A Law)
  • Analog input: 1Vpp
  • Analog bandwidth: 300 KHz
  • FWHM spectral width: 100 nm
  • PC to PC communication
  • PC to PC communication using 660 nm and 950 nm LED through RS-232 standard

RS-232 Port Type

  • Two 9 Pin D type connector

Baud rate

  • Maximum 115.2 KBps Baud

Fiber optic cable

  • Type: plastic optical cable, stepindex,multimod
  • Core refractive index-n1: 1.492
  • Clad refractive index-n2: 1.406
  • Numerical aperture: 0.50
  • Acceptance angle: 60º
  • Fiber diameter: 1000 microns
  • Outer diameter: 2.2mm
  • Numberof Fibers:  4
  • Fiber length: 1Meter,3Meter
  • SwitchFaults: 8switch faults
  • Test points: 45 test points
  • Interconnections: 2mmbanana sockets
  • Power supply: GND,+5V,+12V, -12V



Experiments

  • Setting up a fiber optic analog link and digital link
  • Study of losses in optical fiber:
  • - Measurement of propagation loss and bending loss
  • Measurement of numerical aperture
  • Characteristics study of LED's and Photo detectors
  • Study of time division multiplexing using 16 data channels
  • Study of framing in synchronous time division multiplexing
  • Study of marker in time division multiplexing
  • Measurement of bit error rate
  • Study of eye pattern
  • Study of manchester coding and decoding
  • Study of PCM Voice coding and frequency response of a CODEC chip
  • Forming PC to PC Communication link using optical fiber and RS-232 interface
  • Switch faults
