Adsorption refrigeration system

Order Code: 24258212.5

Category: General Lab Equipment V

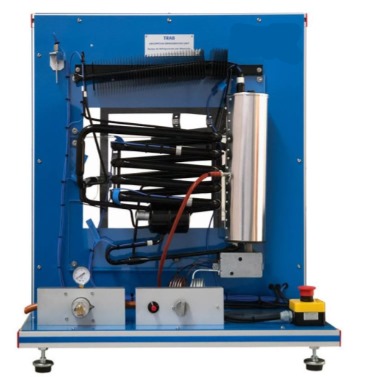

Bench-top unit. Anodized aluminum frame and panels made of painted steel. Main metallic elements made of stainless steel. Diagram in the front panel with distribution of the elements similar to the real one. Cond...



SPECIFICATION

  • Bench-top unit.

  • Anodized aluminum frame and panels made of painted steel.

  • Main metallic elements made of stainless steel.

  • Diagram in the front panel with distribution of the elements similar to the real one.

  • Condenser: finned exchanger.

  • Evaporator.

  • Absorber.

  • Absorption tank.

  • Compartment with freezing zone and cooling zone with one temperature sensor in each zone.

  • Solenoid valve.

  • Generator or heater, possibility to select the heat source between an heating element or LPG:

  • To work with LPG:

  • Burner and piezoelectric igniter: to ignite the flame of fuel.

  • Pressure regulator with manometer (range 0 – 3 bar) to regulate the LPG inlet pressure to the generator.

  • To work with an electrical heating element:

  • Electrical heater: 230 V, 125 W.

  • Control of power.

Instrumentation:

  • Ten temperature sensors distributed at key points of the unit.

  • Sensors for the power by the electrical heating element.

  • The unit includes all the safety measures required for a safe operation:

  • The unit is perfectly watertight to avoid ammonia leakages.

  • Safety pushbutton.

Electronic console:

  • Metallic box.

  • Connectors for the temperature sensors.

  • Sensor selector for temperature sensors.

  • Digital display for temperature sensors.

  • Heating element switch.

  • Heating element regulator.

  • Digital display for the power of the heating element.

  • Main switch.

  • Cables and accessories, for normal operation.
