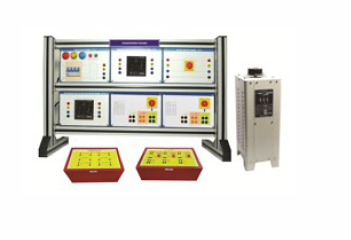

AC Transmission Lines & smart grid trainer

Order Code: 23246569.3

Category: General Lab Equipment II

ABCD parameters of AC transmission lines Voltage Regulation Characteristics of AC transmission lines for resistive, inductive, and capacitive loads Characteristics of a High-Voltage AC Transmission Line Voltage Compensation of a High [1]...



SPECIFICATION

  • ABCD parameters of AC transmission lines
  • Voltage Regulation Characteristics of AC transmission lines for resistive, inductive, and
  • capacitive loads
  • Characteristics of a High-Voltage AC Transmission Line
  • Voltage Compensation of a High
  • [1]Voltage AC Transmission Line Using Switched Shunt Compensation
  • Effect of Length on the Characteristics and Voltage Compensation of a High-Voltage AC
  • Transmission Line
  • Voltage Compensation of a Long, High-Voltage AC Transmission Line using Distributed,
  • Switched Shunt Compensation
  • Control of the Active Power Flowing Through Voltage-Compensated AC Transmission Lines
  • Static Var Compensator (SVC)
  • Voltage Compensation of AC Transmission Lines Using an SVC
  • Dynamic Power Factor Correction Using an SVC
  • Static Synchronous Compensator (STATCOM)
  • Voltage Compensation of AC Transmission Lines Using a STATCOM
  • Dynamic Power Factor Correction Using a STATCOM
  • High Voltage DC (HVDC) ? Transmission Systems
  • Voltage Regulation and Displacement Power Factor (DPF) in Thyristor Three-Phase Bridges
