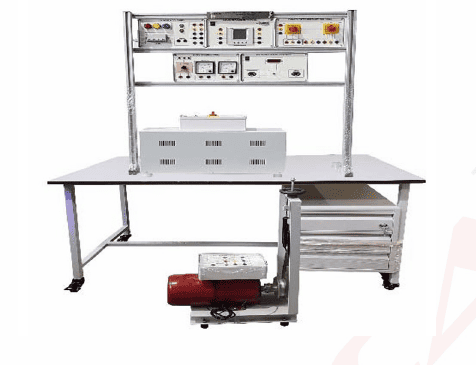

AC Phase-Wound Slip Ring Motor Training System Electrical Control Panel

Order Code: 24257843.5

Category: General Lab Equipment V

  1. System Construction Panel Type: Sturdy flat panel system with an aluminum profile (tabletop design). Component Housing: High-voltage components are housed in plastic enclosures to minimize the risk of electrical shock. ...



SPECIFICATION



1. System Construction

  • Panel Type: Sturdy flat panel system with an aluminum profile (tabletop design).

  • Component Housing: High-voltage components are housed in plastic enclosures to minimize the risk of electrical shock.


2. Input 3-Phase DOL Starter Panel

  • MCB: 4-pole MCB, 415V/4A

  • Contactor: DOL 9A Contactor with 230V, 50Hz, 11VA coil

  • Overload Relay: Bimetallic thermal overload relay with a range of 1.4A to 2.3A

3. Integrated AC 3-Phase Multifunction Measurement Panel

  • Measurement Type: Bidirectional multifunction

  • CT Input: 3-phase, ¾ wire, 415V, CT input 5A

  • Display: LCD/LED display

  • Auxiliary Supply: 230V, 45-65Hz, 5W

  • Measured Parameters: Voltage (V), Current (I), Frequency (Hz), Power Factor (Pf), KVA, KW, KWH

4. Star-Delta Starter Panel

  • Switch Type:

    • FWD/REV, 3-pole, 3-way switch with center OFF, rated 6A/440V

    • Star/Delta, 3-pole, 3-way switch with center OFF, rated 6A/440V

5. 3-Phase Wound Rotor & Synchronous Motor Panel

  • Rotor Resistors:

    • 30Ω/5A, with 3 taps (0Ω, 15Ω, 21Ω, 30Ω), 3 resistors provided

  • Rotor Resistor Selector Switch: 3-pole, 6-way, rated 6A/440V

  • DC Rotor Excitation Relay: Overcurrent relay, 3A

6. DC Voltmeter & DC Ammeter Panel

  • DC Voltmeter: Measurement range 0-300V

  • DC Ammeter: Measurement range 0-5A, with polarity protection diode

7. SCR Actuator (Variable DC) and Sensor Signal Conditioning Panel

  • SCR Actuator: Full bridge SCR-based system, 0V-195V, 3A cosine firing with linear characteristics

  • Signal Conditioning: Supports circuit for speed and torque measurement in kg wt, with output range 0-2.5V DC (Full Scale)

8. Instrumentation Power Supply and Multichannel Digital Meter Panel

  • Power Supply:

    • +/-12V, 500mA

    • +5V, 300mA

    • Unregulated 17V DC/750mA

    • Line synchronizing signal

    • 13V, 3A

  • Digital Display: Multi-channel display of torque, speed, and other parameters

Motor Specifications

  • Motor Type: 3-phase AC integrated motor

  • Voltage: 415VAC, 50Hz

  • Capacity: 5HP, 4-pole, 1500RPM

  • Rotor Construction: Star-connected with four terminals including the star point, brought out on 4 slip rings mounted on the shaft

  • Stator Construction: Six terminals for starting the motor using the star-delta starter

  • Frame/ Mounting: 100 frame, chassis-mounted, 19mm shaft diameter

  • Loading Arrangement: Friction brake pulley (60.5mm diameter) with a 20kg spring balance for torque measurement

  • Speed Measurement: Hand-held tachometer

List of Experiments

  1. Speed-torque characteristics of a 3-phase wound rotor induction motor with variable rotor resistance.

  2. Efficiency and input power factor measurement of a 3-phase wound rotor induction motor.

  3. Speed-torque characteristics of a 3-phase short-circuited rotor induction motor.

  4. Efficiency and input power factor measurement of a 3-phase short-circuited rotor induction motor.

  5. Speed-torque characteristics of a 3-phase synchronous motor.

  6. Efficiency and input power factor measurement of a 3-phase synchronous motor.

  7. Use of a synchronous motor as a power factor improvement device; study of ‘V’ curves.

  8. Study of Direct-On-Line (DOL) starter for a 3-phase induction motor.

  9. Study of the star-delta starter for a 3-phase induction motor.

  10. Study of rotor resistance starter for a 3-phase wound rotor induction motor.

  11. Study of direction reversal for a 3-phase induction motor.
