Absorption In Sieve Plate Column
Order Code: 14219
Category: Mass Transfer Lab
Introduction: The set up consists of a column fitted with perforated plates. Liquid is fed at the top of the column through distributor. The solute gas and air are measured separately, mixed in a mixing chamber and then passed through the perforated ...
SPECIFICATION

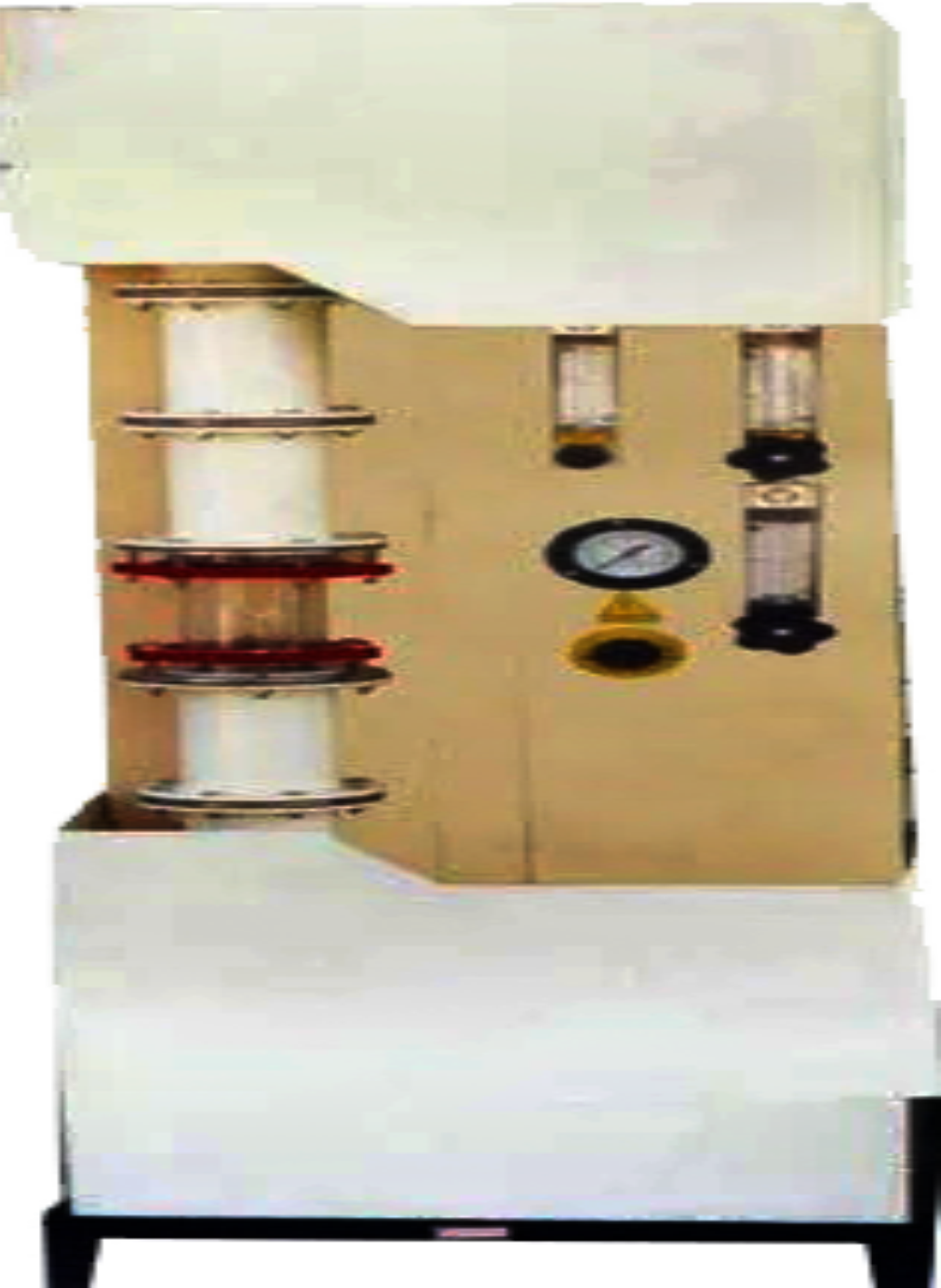

Introduction: The set up consists of a column fitted with perforated plates. Liquid is fed at the top of the column through distributor. The solute gas and air are measured separately, mixed in a mixing chamber and then passed through the perforated plates vertically upward and absorbed in liquid.
Specifications: Column: Material Stainless Steel. Dia 80mm, Length 1000mm (approx). One section of column is provided of Borosilicate glass to visualize the process.Plates: Perforated Plates made of Stainless Steel (7 Nos.)Feed Circulation: By compressed air.Pressure Regulator: 0-2 kg/cm².Pressure Gauge: Bourdon type.Feed Tank:Material Stainless Steel, Capacity 20Ltrs.Flow Measurement: Rotameters (One each for feed, air & CO2). Collecting Tank: Material Stainless Steel, Capacity 10 Ltrs.The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.
