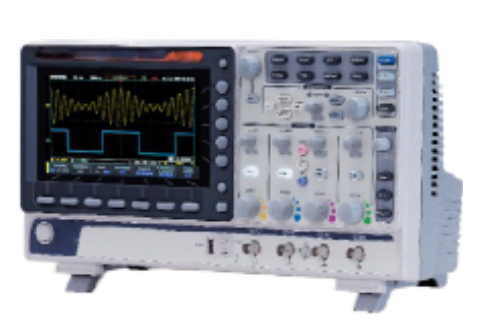

Digital Oscilloscope

Order Code: 21225370.2

Category: General Lab Equipment I

1. Technical Specifications:  Bandwidth : 100 MHz, 2 Input Channels  Sampling Rate : 1 GSa/s Real-Time and 25 GSa/s Equivalent-Time  Record Length : 2 Mega Points  Vertical Scale : 2 mV to 10 V  Horizontal Range...



SPECIFICATION

1. Technical Specifications:

  •  Bandwidth : 100 MHz, 2 Input Channels
  •  Sampling Rate : 1 GSa/s Real-Time and 25 GSa/s Equivalent-Time
  •  Record Length : 2 Mega Points
  •  Vertical Scale : 2 mV to 10 V
  •  Horizontal Range : 1 ns to 50 s
  •  Number of Auto Measurements : Up to 27
  •  Function :+ FFT, FFTrms, Zoom FFT
  •  Display : 5.7? Color TFT LCD
  •  Ports : USB Host and Device Ports

2. FEATURES:
Color LCD Oscilloscope features line
selectable triggers and the ability  17 waveforms on the screen for later recall and comparison. 2-channel oscilloscope is designed to meet educational demands. With fast waveform process capability, more advanced triggering functions, and   lightweight design, this oscilloscope is an excellent replacement for an analog scope. Via the USB Device port, the user can easily build a remote   control program to manipulate the machine, storing data directly into a flash drive for further analysis. Several acquisition modes and 27 auto  measurement functions help the user accurately measure waveform properties. A total of 15 waveforms can be saved into the internal memory for   later recall and display, and two saved reference waveforms plus two live waveforms can be shown on the screen at the same time for comparison.
