Features
Crystallization is the formation of solid particles within a homogeneous phase of saturated liquid. Its wide use has a two-fold basis, a crystal formed from an impure solution is itself pure and crystallization affords a practical method of obtaining pure  chemical substances in a satisfactory condition for packing and storing.
This operation involves both heat and mass transfer.

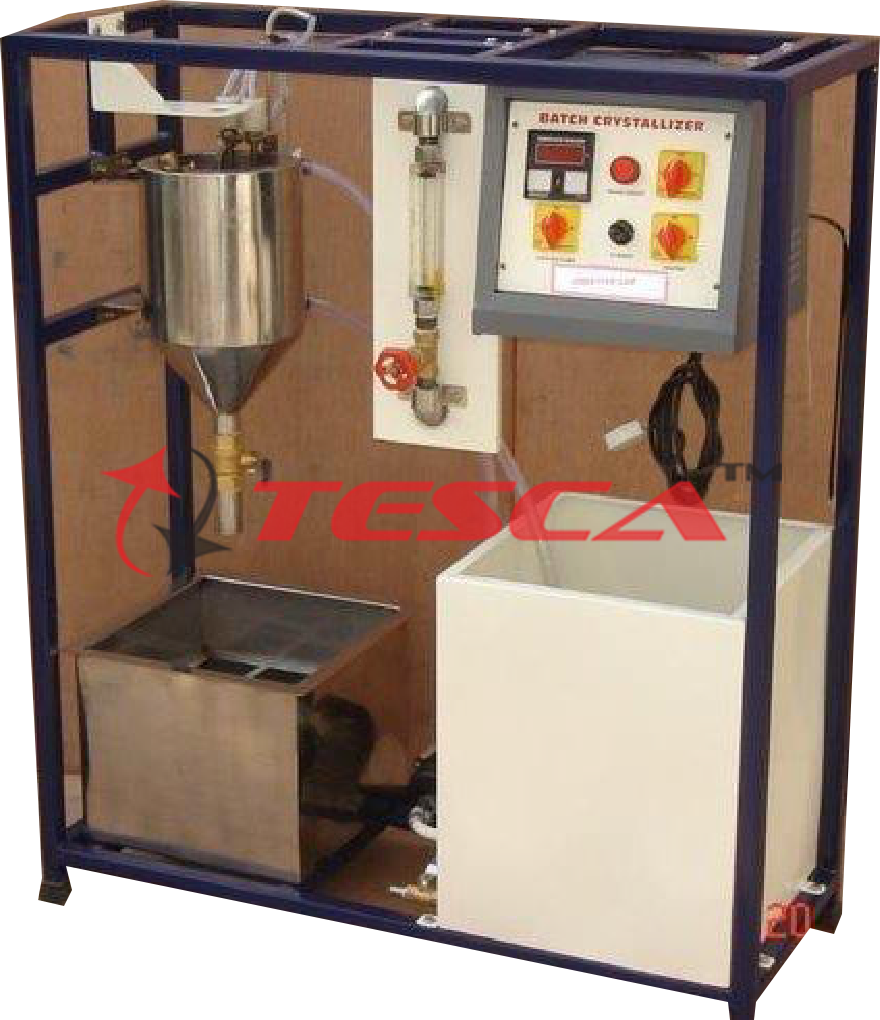

Tesca Batch Crystallizer Cooling type agitated batch crystallizer set up, consists of an open jacketed stirred vessel provided with water heating & cooling arrangement. The feed is prepared in the crystallizer itself with hot water and stirrer. The hot saturated solution in the crystallizer is then cooled by circulation of cooling water and crystals are formed.

Technical Specifications:
Crystallizer : Jacketed Type, Material Stainless Steel, Cap. 2 Ltrs. With conical bottom
Stirrer : FHP, Variable Speed.

Heater : Nichrome wire heater
Cooling Water Tank : Material Stainless Steel, Capacity 30 litre fitted with Pump.
Flow measurement : By Rotameter for cooling water.
Pump : FHP.
Receiving Tank : Material Stainless Steel , Capacity 2 litre with SS sieve
Temp. Sensors : RTD PT-100 type
Control panel comprises of : Digital Temp. Indicator : 0-199.9ºC with multi-channel switch With Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Experimental Capabilities:
To study the performance of a Batch Crystallizer.
To determine the crystal yield and the efficiency of crystallizer.

Services Required:
Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection.
Earth voltage should be less than 5 volts.
Water Supply.
Floor Drain.
Floor area required: 1.0m x 0.75m
Required Chemicals
