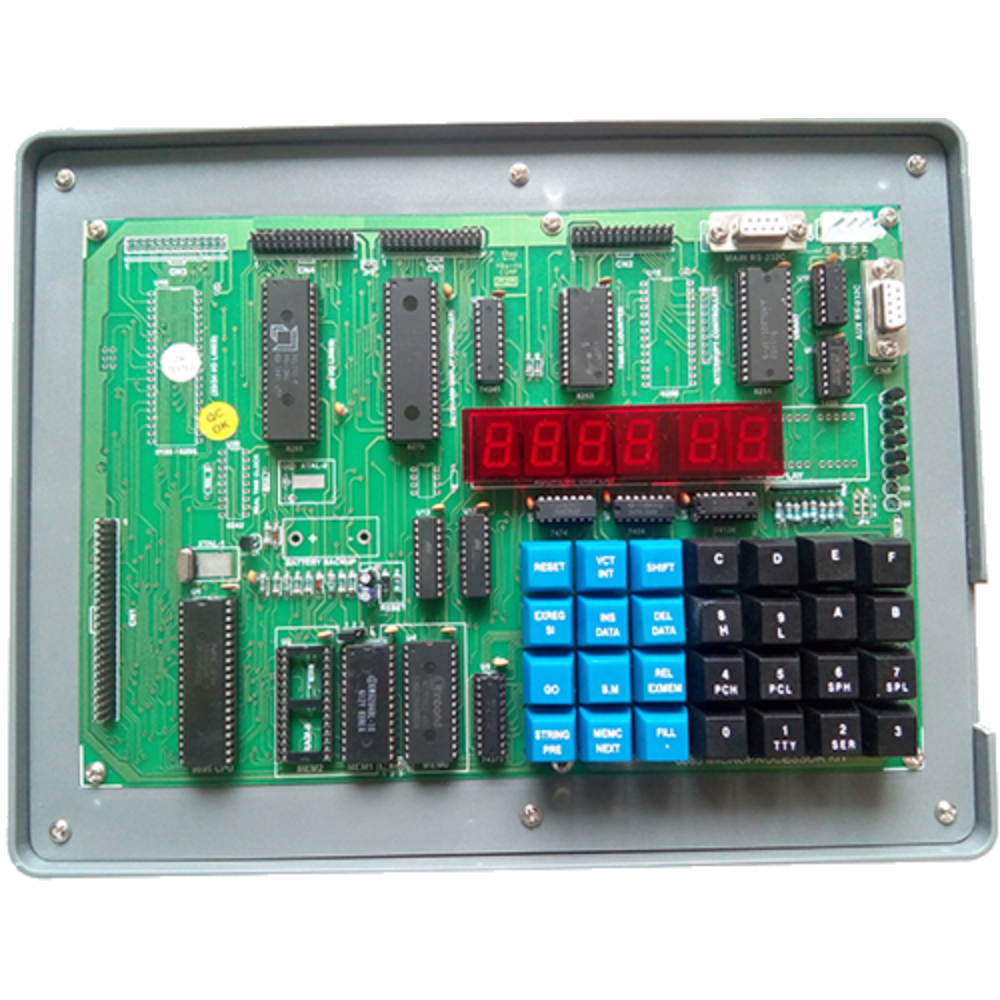

8085 Microprocessor Trainer

Order Code: 23246926.143

Category: General Lab Equipment III

43217 is a single board Microprocessor Trainer Kit based on 8085 Microprocessor, which is widely used to train engineers to develop software/hardware for any industrial process & control. This Kit consists of power full Monitor EPROM, RAM, I/O Li...



SPECIFICATION

43217 is a single board Microprocessor Trainer Kit based on 8085 Microprocessor, which is widely used to train engineers to develop software/hardware for any industrial process & control. This Kit consists of power full Monitor EPROM, RAM, I/O Lines, Timer/Counter, Serial, Seven Segment Display and Keyboard for Man to Machine Interface.

Specifications:
 8K Bytes of EPROM with 8K bytes of Battery Backup RAM.
 22/24 I/O Lines Using 8155/8255, 46 I/O Lines Using 8255/8155, 48 I/O Lines Using 8255, Three Channel Timer/Counter, PC Serial Interface, Interrupt Controller, USART, RTC.
 Seven Segment Display with 28 Keys Hex Keypad .
 Power-full Command like Single Stepping, Break Point, Full Clock Execution, Examine Memory/ Register.
 Uploading & Downloading to and from PC in Windows98/XP/NT.


Optional



  •  EPROM Programmer Module for 2716,2732, 2764, 27128, 27256, 27512.
  •  On-Board Real Time Clock using RTC-6242.
  •  PRINTER INTERFACE to interface with DOT MATRIXPrinter
  •  RS-232 Cable.


Features:



  •  Based on 8085 CPU operating at 6.144 Mhz.
  •  8K bytes of Powerful Monitor Program using 27512 EPROM
  •  8K bytes of RAM using 6264 with Battery Backup using NICD Battery(Optional).
  •  On-board one memory expansion up to 56KB.
  •  Three Channel Timer/Counter using 8253.
  •  24 I/O lines provided through 8255 brought out at 26 Pins FRC Connector to interface with IC-XX Series.
  •  RS-232C interface through SID/SOD lines
  •  Two mode of commands: - Hex Key pad Mode, Serial Mode
  •  Six/Eight Digit Seven Segment Display using 8279.
  •  On-board 8 Channel Interrupt using 8259.
  •  On-board Auxillary Serial using 8251 USART brought out at 9 pin D-type connector.
  •  28Key’s Hex Keypad using 8279 Keyboard Display Controller.
  •  Powerful Commands like Examine/Edit Memory, Examine/Edit Register, Single stepping, Execution, Block Move, Insert Data, Delete Data can be used through Hex keyboard or PC serial mode.
  •  Facility for Downloading/Uploading files from/to PC.
  •  All address, data & control lines are available on KXT Bus 50 pin FRC Connector to interface with SC-XX Series.
  •  All ICS are mounted on IC Sockets.
  •  Bare board Tested Glass Epoxy SMOBC PCB is used.
  •  In-Built Power Supply of +5V/1.5A, ±12V/250mA
  •  Attractive Box Packaging.
  •  User's Manual with sample programs.
  •  295mm x 210mm x 105mm (L x W x H).
  •  Weight 3 Kgs.
