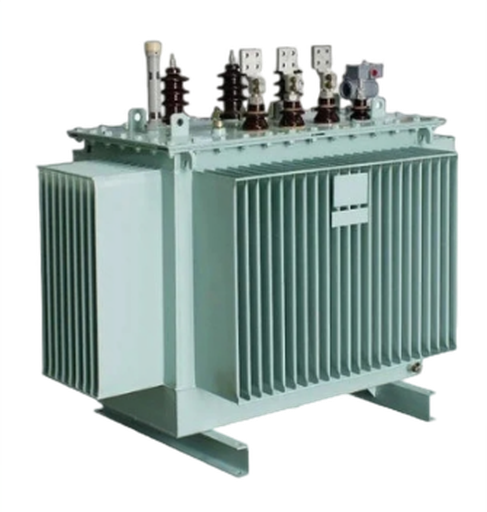

200 kVA OIL IMMERSED TRANSFORMER for Substation Training Equipment
Order Code: 23246300.3
Category: General Lab Equipment II
Three phased transformers ground mounted,oil immersed, with standard accessories. Indoor use. Routine tests and first filling oil included. Design, manufacturing, routine tests & tolerances according to IEC 76 standards. Standard fitting...
SPECIFICATION
- Three phased transformers ground mounted,oil immersed, with standard accessories. Indoor use.
- Routine tests and first filling oil included.
- Design, manufacturing, routine tests & tolerances according to IEC 76 standards.
- Standard fittings : 4 flat bi-directional rollers.
- 2 lifting lugs
- 2 earthing points.
- 1 rating plate(on HV side)
- 1 Bucholz Relay
- 1 Silica Gel with Box,
- 1 Radiator, conservator, oil drain valve etc.
- HV connections: porcelain bushing
- LV connections: porcelain bushing, without cable box.
- Rated power in kVA: 200 kVA
- System voltage: 12 kV
- Frequency: 50Hz
- HV/LV winding material: Cu/ Cu
- Primary voltage: 11000V
- HV tapping by links(off circuit) in: ±2.5%, 0, ±5%
- Secondary voltage: 415V
- HV impulse kV peak in kV: 75 kV
- Power frequency kV rms: 28 kV
- Vector group: Dyn11
- Max. ambient temp. in Deg. C: 40
- Altitude lower thank in meter: 1000
- Temp. rise in winding/oil in Deg. C: 65/60
- No load loss: 420W
- Full Load loss at 75 Deg. C: 2010W
- Impedance voltage: 4%
- Coolling System: ONAN
