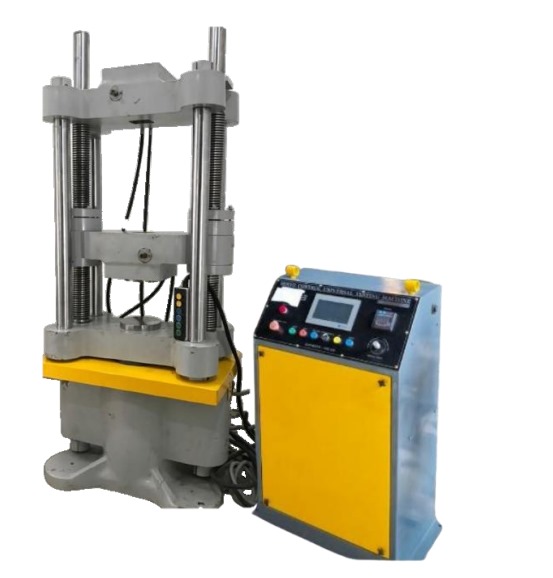

1000kN Universal Testing Machine (UTM) Fully Automatic Machine

Order Code: 24258293.1

Category: General Lab Equipment V

Features: Suitable for Tension, Compression, Bending, Shear and flexural tests.  Should accord with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. Designed for testing materials like conc...



SPECIFICATION

Features:

  • Suitable for Tension, Compression, Bending, Shear and flexural tests.

  • Should accord with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods.

  • Designed for testing materials like concrete, steel, metal materials and composite plastic.

  • Fully automated operation using advanced closed loop digital feedback control system. Includes software for real time data acquisition and stress#strain analysis.

  • Complaint with standards such as EN ISO 75001 and EN ISO 68921 and ASTM Standards. Supports intuitive interfaces with graphical displays.

  • Rigid 4 Column or 2Column designs to ensure minimal deformation. Equipped with hydraulic or servo hydraulic or servo hydraulic operation for precise control of frame.

  • Various grips for flat of round specimens. Optional extensometers deflectometers and environmental  chambers for extended applications.

  • Should be EN100021, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant.

  • Frames should feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures

  • Control console should be integrated with digital meter, hydraulic power pack, precise electronic loading regulator and unloading valves

  • Extralength screws and columns, with an adjustable lower crosshead, to increase the available test space for longer test samples

  • It is with digital displacement transducer for the best positioning and measuring accuracy.

  • It Consist of Main frame; Control console; Controller and sensor; Sample jaw three sets; Bend support saddle; Bend pressure energy; Spheric compression plate; Lower compression plate; Top board; Ground screw and nut; Inner hexagon spanner; wire power cord; O type gasket; Cruciform  screw driver; Double offset ring spanner and Shearing accessories

Advanced Specifications:

  • Max Ram TravelApproximately 1500mm

  • Vertical Clearance upto 695 mm for compression tests

  • Dimensions: Around 1000×700×1750 mm (Varies by Model)

Technical Parameters:

  • Max. Testing power: 1000KN or Higher

  • Testing power precision: Grade One (minimum)

  • Max. lift speed of testing board: 70mm/min (minimum)

  • Max. Tension distance: 600 ~ 630mm

  • Compress distance: 0490mm or higher

  • Clamp grid parameter:

  • Clamp diameter of round specimen: Dia. 2060mm or higher

  • Clamp thickness of flat specimen: 040mm or higher

  • Clamp width of flat specimen: 80 ~ 90 mm

  • Size of compression plate: 200mm x 200mm (approx.)

  • Bending stick distance: 500 ~ 600 mm

  • Bending Stick width: 140 ~ 150 mm

  • Bending Degree allowance: 150 ~ 200 mm

  • Main frame Parameter:

  • Oil Pump power: 1.5KW or higher

  • Distortion testing device: Staff

  • Overload protection: 25%

  • Weight: Minimum. 3,000 kgs
