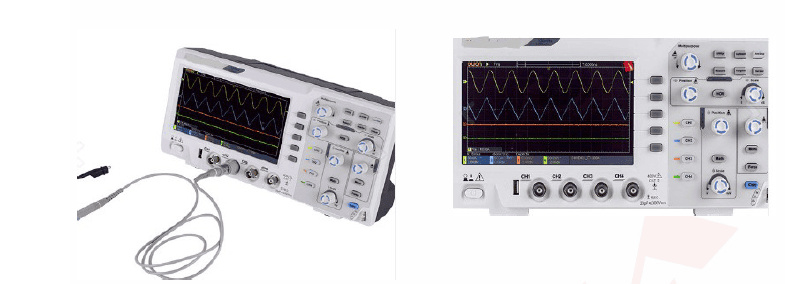

1. Channel & Sampling

• Number of Channels: 4

• Bandwidth: 100 MHz

• Real-Time Sampling Rate:

  • 1 GSa/s (Single Channel)

  • 500 MSa/s (Two Channels)

  • 250 MSa/s (Four Channels)

• Equivalent Sampling Rate: 50 GSa/s

• Memory Depth: 4 Mpoints

• Vertical Resolution: 8 bits

2. Vertical System

• Input Coupling: AC, DC, Ground

• Rise Time: ≤ 3.5 ns

• Vertical Scale: 1 mV/div to 10 V/div (1-2-5 sequence)

• Input Impedance: 1 MΩ ±2% || 11 pF ±2 pF

• Maximum Input Voltage:
  1 MΩ: ≤ 400 VPK (DC + Peak AC ≤ 10 kHz)

3. Time Base & Trigger

• Frequency Counter: Inbuilt, 100 MHz

• Time Base Range: 2 ns/div to 100 s/div

• Time Base Accuracy: ±25 ppm

• Trigger Sources: CH1, CH2, EXT, EXT/5, AC Line

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Edge, Slope, Pulse, Video, Window, Interval, Dropout, Runt, Pattern, Serial Trigger

4. Measurement & Math Functions

• Automatic Measurements: 38 parameters including:

  • Peak-to-Peak, Max, Min, Amplitude, Top, Base, Std Dev, RMS, Cycle RMS, Frequency, Period, +Width, –Width, Rise Time, Fall Time, Bandwidth, Duty Cycle, Delay, Time Level, etc.

• Math Functions: Add, Subtract, Multiply, Divide, FFT (1 Mpoint), Derivative (d/dt), Integration, Square Root

5. Component Testing

• Functionality: System must support generation of test patterns for various components (semiconductors, diodes, transistors, resistors, capacitors, inductors) to assist in circuit diagnostics.

6. General Specifications

• Interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out

• Display: 7.0" TFT LCD

• Save/Recall Options: Setups, Waveforms, CSV Files, Images (Picture Format), Standard Interface
