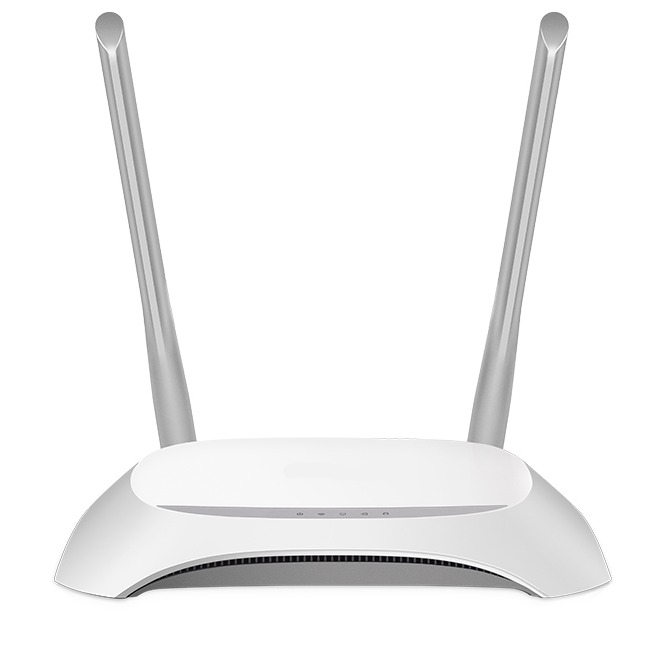

Wireless Router

Order Code: 24258347.4.3

Category: General Lab Equipment V

Technical Specifications :  300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work  Supports Aginet Config- Enable ISPs to customize default configurations by themselves. Parental Controls manag...



SPECIFICATION

Technical Specifications :

  • 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
  • Supports Aginet Config- Enable ISPs to customize default configurations by themselves.
  • Parental Controls manage when and how connected devices can access the internet
  • IPTV supports IGMP Proxy/Snooping to optimize IPTV streaming
  • Compatible with IPv6 (Internet Protocol version 6)
  • Guest Network provides separate access for guests while securing the home network
  • 2 Antennas

Wireless Features

  • Frequency : 2.4-2.4835GHz
  • Signal Rate : 11n: Up to 300Mbps(dynamic) , 11g: Up to 54Mbps(dynamic) ,11b: Up to 11Mbps(dynamic)
  • Transmit Power : CE: <20dBm, FCC:<30dBm
  • Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
  • Wireless Security : 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK

Software Features

  • Quality of Service : WMM, Bandwidth Control
  • WAN Type : Dynamic IP/Static IP/PPPoE/PPTP/L2TP
  • Management : Access Control : Local Management : Remote Management : Aginet Config (Optional)
  • DHCP : Server, Client, DHCP Client List, Address Reservation
  • Port Forwarding : Virtual Server,Port Triggering, UPnP, DMZ
  • Dynamic DNS : DynDns, Comexe, NO-IP
  • VPN Pass-Through : PPTP, L2TP, IPSec (ESP Head)
  • Access Control : Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
  • Firewall Security : DoS, SPI Firewall : IP Address Filter/MAC Address Filter/Domain Filter
  • IP and MAC Address Binding
  • Protocols : Support IPv4 and IPv6
  • Guest Network : 2.4GHz Guest Network x1

Others

  • Certification : CE, RoHS
  • Package Contents : Wireless N Router TL-WR850N : Power supply unit : Ethernet Cable : Quick Installation Guide
  • System Requirements : Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, : Windows 10 or Mac OS or Linux-based operating system
  • Environment :
  • Operating Temperature: 0?–40? (32?–104?)
  • Storage Temperature: -40?–60? (-40?–140?)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
