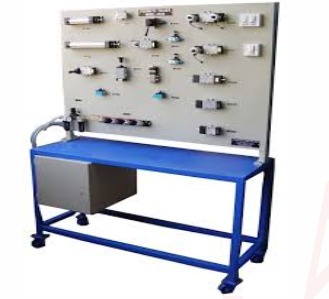

Pneumatic Trainer

Order Code: 24258351.2

Category: General Lab Equipment V

Features Design & Functionality: Understanding the design and operation of an electro-pneumatic system. Identification and function of electro-pneumatic components and their symbols. Exploration of direct and indirect manual controls, ...



SPECIFICATION

Features
Design & Functionality:

  • Understanding the design and operation of an electro-pneumatic system.
  • Identification and function of electro-pneumatic components and their symbols.
  • Exploration of direct and indirect manual controls, stroke-dependent controls, time-dependent controls with time delay valves, and pressure-dependent controls with pressure sequence valves.
  • Implementation of logic AND/OR functions for start signals.
  • Application and fault diagnostics of electro-pneumatic controls.
  • Interpretation of functional diagrams and systematic design of electro-pneumatic sequence controls.
  • Drafting circuit diagrams for electro-pneumatic controls.

Key Components:
Pneumatic Power Section – Electric Control Section
Regulators & Valves:

  • Flow and Pressure Regulator (FRL) unit with pressure gauge (10 bar), ¼” BSP (F) - 1 No.
  • Main fold 4-way, ¼” BSP (F) - 1 No.
  • One-way flow control adjustable valve ¼” BSP (F) - 1 No.
  • Ball valve ¼” BSP for ON-OFF - 1 No.
  • Silencer - 1 No

Directional Control Valves:

  • 5/2 Way DC valve spring return ¼” BSP (F) 24VDC single solenoid - 1 No.
  • 5/2 Way DC valve BSP (F) 24VDC single solenoid - 1 No.
  • 3/2 Way Single solenoid DC Valve BSP (F) 24VDC - 1 No.

Cylinders:

  • Single acting cylinder - Bore 25mm, Stroke 100mm - 1 No.
  • Double acting cylinder - Bore 25mm, Stroke 100mm - 2 Nos.

Switches & Sensors:

  • Limit switches - 3 Nos.
  • Proximity switches (inductive) - 1 No.

Control System:

  • 24VDC power supply.
  • 8 Relay card PLC interfaceable with NO/NC contact & 24VDC coil.
  • Siemens PLC (12 input + 8 output) with CDP & ladder software.

Air Compressor:

  • Displacement: 3 cm³
  • Working Pressure: 7 kg/cm² (7 bar)
  • 0.5 HP 650 RPM electric motor, 230V, 50Hz, 1 phase.
  • 10 bar gauge and shut-off valve with 6.3 mm brass connector hose.

PC Specifications:

  • 23" Monitor
  • Intel i5 Processor
  • 1TB SSD, 8GB RAM
  • Windows 11 Pro / Latest OS
