Optical communication

Order Code: 21224672.41

Category: General Lab Equipment III

Advanced Fibre Optic Trainer-Dual Channel & PC-PC Communication Facility Fibre Optics as a new transmission medium has revolutionized the telecom industry. It has numerous advantages over traditional wired or wireless transmission systems. Th...



SPECIFICATION

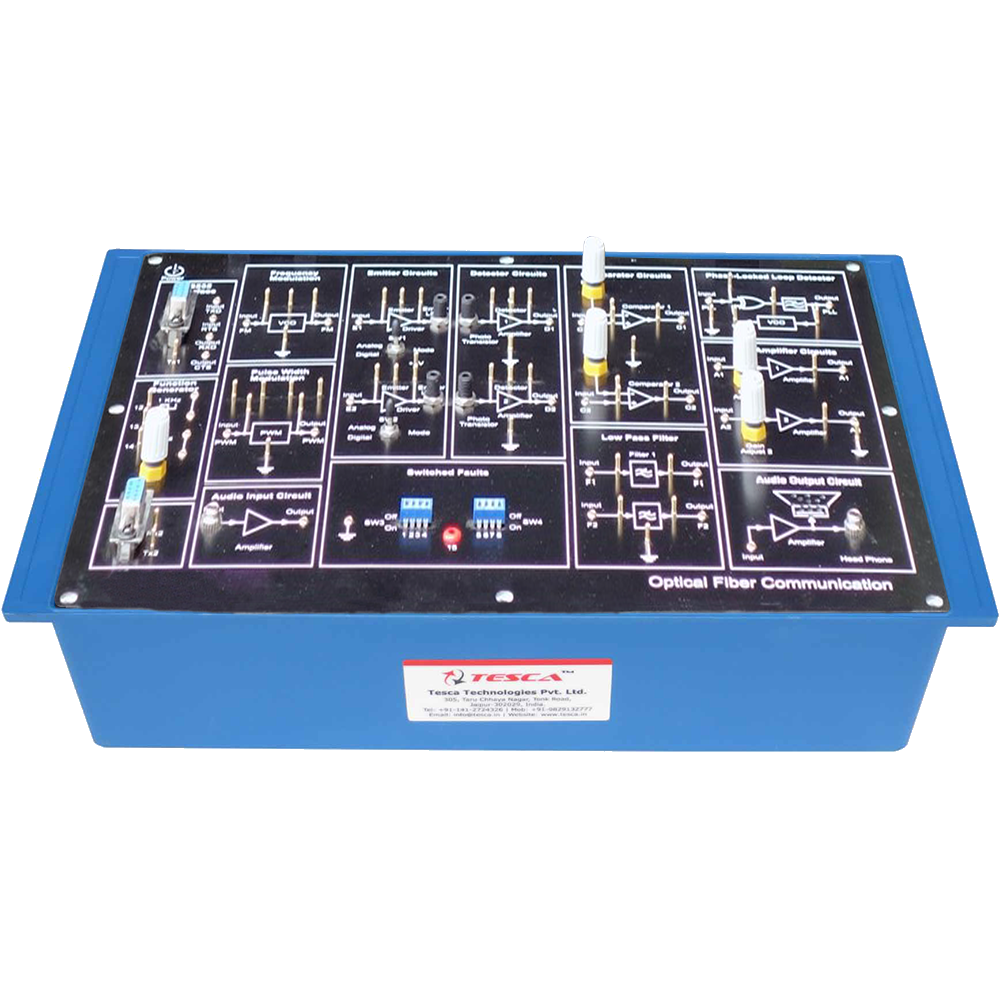

Advanced Fibre Optic Trainer-Dual Channel & PC-PC Communication Facility

Fibre Optics as a new transmission medium has revolutionized the telecom industry. It has numerous advantages over traditional wired or wireless transmission systems. Thus study of Fibre Optic communication systems has become more important. Advanced Fibre Optics Trainer is designed to learn the communication techniques in Fibre Optics. The trainer demonstrates the properties of Fibre Optics Transmitter and receiver, characteristics of Fibre Optics Cable, different types of Modulation / Demodulation techniques and PC-to-PC communication via fibre link using an RS232 interface. It can also be used to demonstrate various Digital Communication Techniques via Fibre Optic link using Digital Communication Trainers.

Technical Specifications

  • Transmitter: 2 No., Fibre Optic LED having a peak
  • wavelength of emission 660 nm & 950 nm
  • Receiver: 2 Nos., Fibre Optic Photodetector
  • Modulation Techniques : 1. AM 2. FM 3. PWM
  • Drivers: 1 No. with Analog & Digital modes
  • AC Amplifier : 2 Nos.
  • Clock: Crystal Controlled Clock 4.096 MHz
  • PLL detector: 1 No.
  • Comparator: 2 Nos.
  • th Filters: 2 Nos. 4 order Butterworth, 3.4 KHz cutoff frequency
  • Analog Band Width: 350 KHz
  • Digital Band Width: 2.5 MHz
  • Function Generator :
  • 1. 1 KHz Sine wave (Amplitude adjustable)
  • 2. 1 KHz square wave (TTL)
  • Voice Link: F.O. voice link using microphone &
  • speaker (built-in)
  • PC-PC Communication: Using 2-channel RS232
  • Port : RS232 9 Pin
  • Baud Rate : 19200 baud
  • Switched Faults: 4 in transmitter & 4 in Receiver
  • Fibre Optic Cable: Connector Type Standard SMA
  • Cable Type: Step-indexed multimode PMMA plastic
  • Core Refractive Index: 1.492
  • Clad Refractive Index: 1.406
  • Numerical Aperture: Better than 0.5
  • Acceptance Angle: Better than 60 deg.
  • Fibre Diameter: 1000 microns
  • Outer Diameter: 2.2 mm
  • Fibre Length: 0.5m & 1m
  • Test Points: 50
  • Inter connections: 4 mm sockets
  • Power Supply : 220 V ±10 %, 50 Hz / 60 Hz on request
  • Power Consumption: 4.5 VA(approx.)

Accessories Included :

  • Line cord, Manuals, NA
  • Measurement Jig, Mandrel, Fibre
  • Cables, Microphone, Headphone,
  • Set of Patch Cords, PC-PC
  • Communication Software
