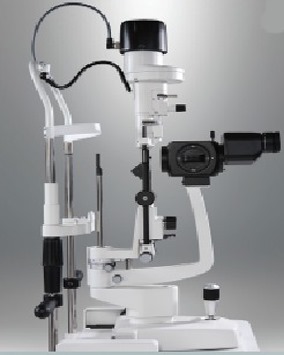

Basic Slit Lamp

Order Code: 24258321.1.9A

Category: General Lab Equipment V

Slit-Lamp Features • Optical Quality: Provides crisp and detailed images.  • MaxLite™ Coatings: Offers the highest throughput of light with superb anti-reflective  Properties.  • Additional Benefits:  &bu...



SPECIFICATION

Slit-Lamp Features
• Optical Quality: Provides crisp and detailed images.
• MaxLite™ Coatings: Offers the highest throughput of light with superb anti-reflective
Properties.
• Additional Benefits:
• Anti-fungal
• Anti-fog
• Scratch-resistant
• True-to-life resolution

Optics Specifications
• Type: Galilean
• Magnification (3-Step): 10X, 16X, 25X
• Eyepiece: WF 12.5X/18 mm, diopter adjustment ± 5 mm
• Interpupillary Distance: 48.5-77 mm
• Working Distance: 0-12 mm

Beam and Illumination
• Beam Sizes: 0.3, 1, 3, 5, 9, 12 mm and continuous
• Pupil Diameter: 1.5 to 12.0 mm
• Tilt: 0-180°
• Filters:

  • Red free
  • Cobalt blue
  • Heat absorbing
  • Neutral density

Physical Dimensions
• Width: 100 mm
• Depth: 107 mm
• Height: 30 mm
• Base Width: 80 mm
Lighting
• Lamp Type: 5V 20W Halogen
Overall Dimensions
• Size: 465 mm x 316 mm
• Weight: 24 kg (packed)
Standard Accessories
• Tonometer
• Beam Splitter
• Cameras
• Diffuser
• Motorized Table
