AIR CONDITIONER TRAINER
Features

• h-x diagram in real time

• high practical relevance due to real dimensions and use of commercial components

• manual or automatic operation

• Game-Based Learning: learn complex theory easily and playfully

Specification

• practice-oriented air conditioning and ventilation system with 2 independent system components: main unit and water chiller

• manual or automatic operation

• control of the experimental plant using a PLC, operated by touch screen

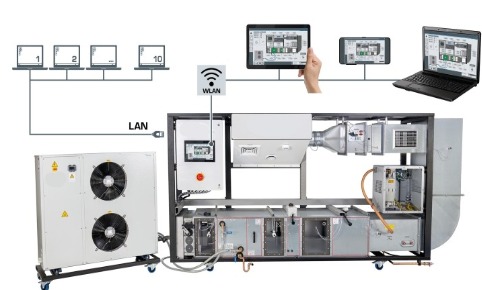

• screen mirroring: possible to mirror the user interface on up to 10 end devices

• main unit: air duct, ventilator, air condition. system

• air conditioning system with air cooler, electric air heater,  humidification

• hoses connect air cooler to water chiller

• air duct from hot galvanised sheet with sight window and pressure measurement connections to record pressure curves

• air duct with filter, multi-leaf damper, ceiling vent, protective grating, vent. grille, fire protect. flap, inspection flap, sound insulation link, smoke detector

• refrigerant R410A, GWP: 2088

• data acquisition via PLC on internal USB memory, access to stored measured values via WLAN with integrated router/ LAN connection to customer's own network

• digital multimedia teaching material online in the: E-Learning course, worksheets, videos

Technical data

• PLC: Weintek cMT3162X

• Ventilator, EC motor

• nominal speed: 2998min-1

• power consumption: 0,5kW

• volumetric air flow rate: 1800m3/h

• Air heater, infinitely: 12kW

• Water chiller with scroll compressor

• rated cooling capacity: approx. 16,9kW at 15/32°C

• power consumption: approx. 4,9kW at 15/32°C

• flow: 2,9m3/h

• water tank: 70L

• Steam humidifier

• steam capacity: 10kg/h

• power consumption: 7,5kW

• Main duct, WxH: 712x508mm

• Refrigerant: R410A, GWP: 2088, filling volume: 1,9kg, CO2-

• equivalent: 3,97t

• Measuring ranges

• pressure: -25...25mbar 400V, 50Hz, 3 phases
