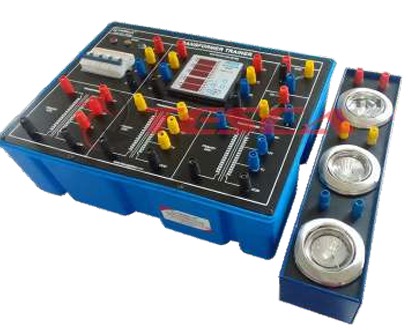

Transformer Trainer
Order Code: 24258032.10
Category: General Lab Equipment V
The board consists of the following built-in parts: 01. Multifunction meter provided to measure single and three phase Voltage, Current, Wattage, KWH, KW, KVA, Frequency, Power Factor and etc. 02. Three Transforme...
SPECIFICATION
The board consists of the following built-in parts:
01. Multifunction meter provided to measure single and three phase Voltage, Current, Wattage, KWH, KW, KVA, Frequency, Power Factor and etc.
02. Three Transformers: Rating: 60VA
Primary Voltage: 0 - 230 V
Secondary Voltage: 0 – 7V, 12V, 16V
03. 4 Pole MCB: 2 Amp for short circuit and over current with output terminals and indicator.
04. Load: Three 60W Halogen Provided for Single and Three Phase Load.
05. Provision of Connecting Load in Star and Delta Configuration.
05. The unit is operative on 3 Phase 415V ±10% at 50Hz AC Mains.
06. All above equipment provided with 15A coloured terminals.
07. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
